Multi-Head Latent Attention

• Author: Shouzheng Liu
• Date: February 19, 2025

Background

Multi-head Attention (MHA)

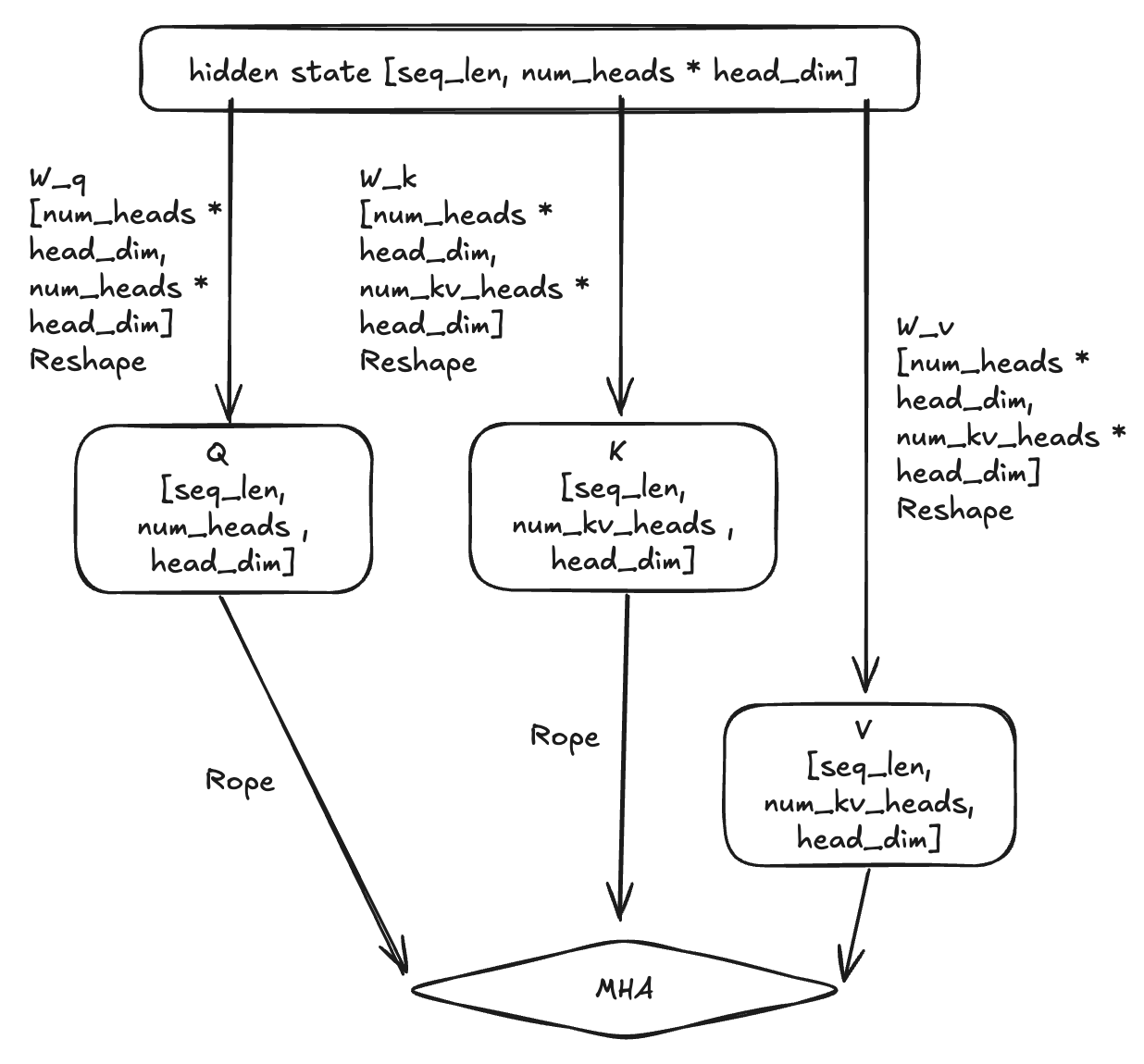

Attached is the compute graph of an MHA block, where square nodes represent tensors materialized in memory, and edges denote certain operations. Once Q, K and V are prepared, they are sent to the mha kernel. K and V can be cached for reusing during the decoding stage.

Compute graph of multi-head attention

Multi-head Latent Attention (MLA)

The key idea of MLA is to use a "latent" vector (KV_lora) to store a compressed representation of the K and V tensors during inference. Instead of directly computing K and V at full precision, the hidden states are first down-projected to a much lower-dimension space and then up-projected to the full dimension of head_dim * num_heads . K and V share the same compressed representation KV_lora.

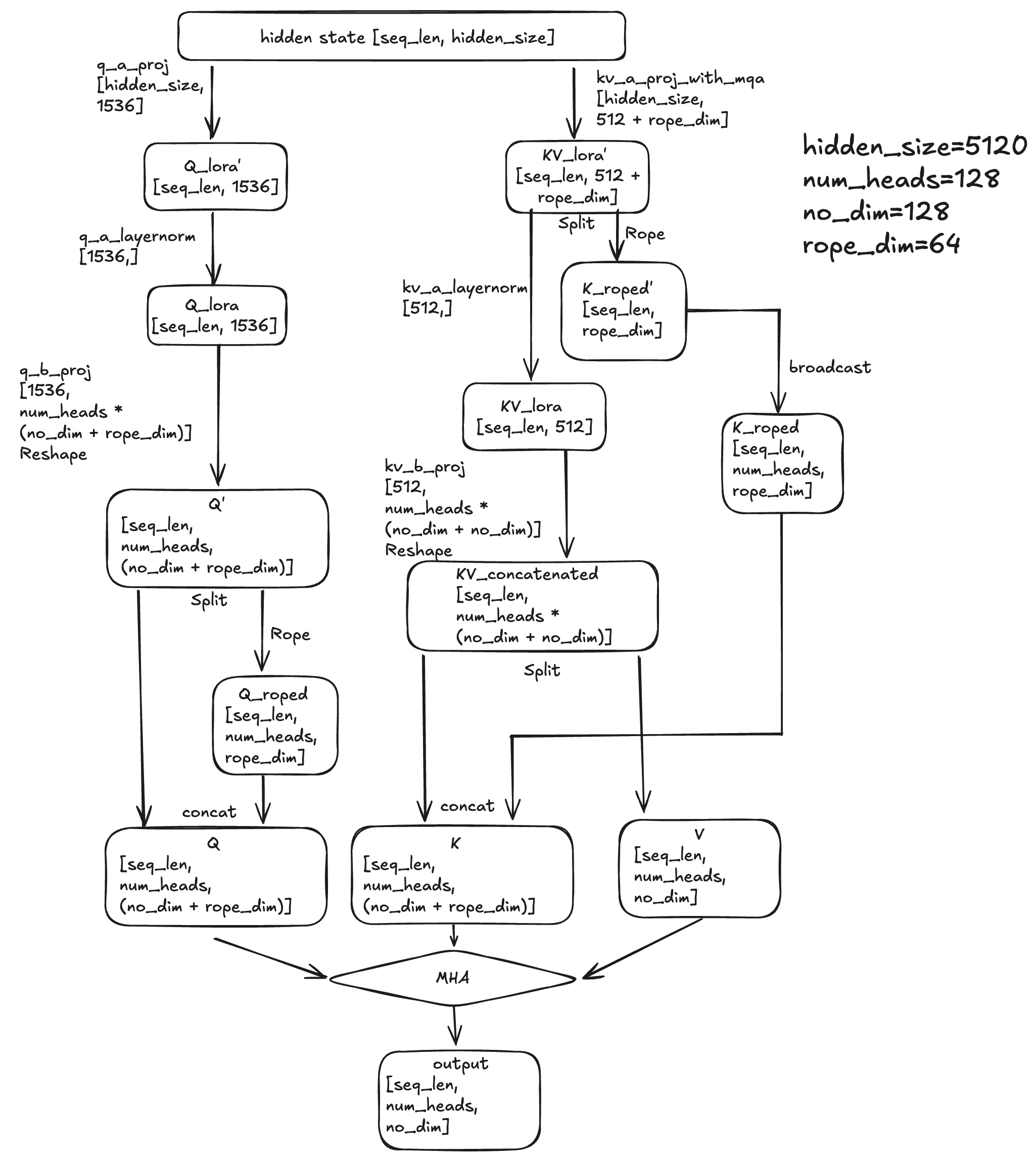

Original compute graph of multi-head latent attention

Rotary Position Embedding (ROPE) in MLA

Applying ROPE in MLA is somewhat non-trivial because not all elements of an attention head undergo rotary encoding.

• For Q : ROPE is only applied to the last 64 (rope_dim) elements of each attention head, which has a total size of 192 (no_dim+rope_dim).
• For K : Instead of applying ROPE to the entire latent vector (KV_lora'), we extract the last 64 elements of each token, apply ROPE, and broadcast the results to all attention heads. Then, the K tensor is constructed by concatenating the roped part with the remaining dimensions that do not undergo rotary encoding.

When computing attention scores, the unroped elements of Q are multiplied with the unroped elements of K. The roped elements of Q are multiplied with the roped elements of K.

KV cache

While MLA aims to reduce computation and memory usage, its original implementation does not actually reduce the KV cache size. This is because the full K and V tensors are still materialized after up-projection, rather than being stored in a compressed format throughout the process.

Optimized Attention Computation in MLA

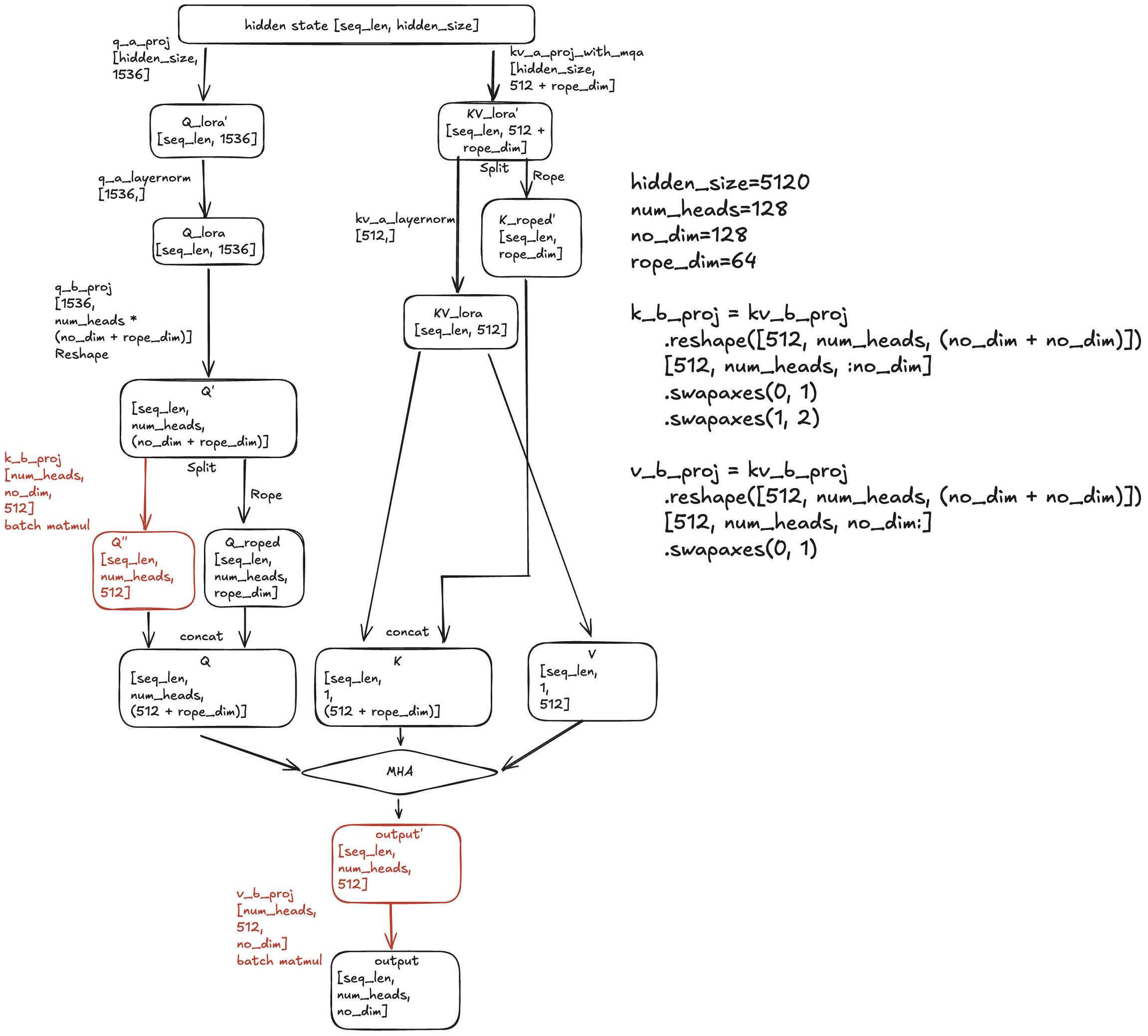

Optimized compute graph of multi-head latent attention

We calculate attention scores using

\(p=q^{T}k\),

where:

\(q=W_{qup}Q_{lora}\) , \(k=W_{kup}K_{lora}\).

This allows us to rewrite as:

\(q=W_{kup}^TW_{qup}Q_{lora}\) and \(k=K_{lora}\)

while still keeping the results unchanged.

Similarly, instead of storing and passing the full V tensors, we can simply reuse the compressed KV_lora tensor and apply the up-projection after the MHA computation.

In this way, we only need to cache the KV_lora and the K_roped tensors. (This reduces KV cache size to only 576 values per token!)

Detailed Design

New attention kernel for MLA

In the optimized MLA compute graph, the attention kernel effectively performs multi-query attention (MQA). Specifically:

• The Q input has a shape of [seq_len, num_heads, 576] .
• The K input has a shape of [seq_len, 1, 576] .
• The V tensor is derived by reusing K , where V = K[:, :, :512]

A few points:

1. A head_dim of 576 feels kinda big, although if there will be a performance impact is unclear.
2. Here, we have num_kv_heads=1 . By default we parallelize across KV heads, but with only one KV head, this would lead to severe hardware under-utilization. We can either apply split-k or parallelize across queries. In the latter case, different thread blocks will issue repeated loads of the same K , but since K is quite small, this might not be a major issue.
3. We don’t need to reserve shared memory or registers for V because V is K.

Update KV cache

The KV cache manager needs to be updated to support models that only have K cache. Currently, the implementation assumes the presence of both K and V caches.

Multi-GPU

We can still distribute the workload across multiple devices by splitting across the queries heads. However, since there is only one KV head, we cannot further split it, meaning the KV cache must be duplicated on every device.

We can also explore how MQA (multi-query attention) is optimized for multi-GPU setups to see if we can borrow some ideas.
