Matrix Multiplication on Blackwell: Part 3-The Optimizations Behind 85% of SOTA Performance

Authors: Ali Taha, Jiexiang Liu, Hengjie Wang, Abdul Dakkak
Date: September 12, 2025

In the prior blog posts in this series (Part 1 and Part 2) we talked about how to achieve ~300GFlops for Matmul on NVIDIA’s Blackwell GPUs. In this post, we continue on this journey and discuss how to leverage the 2SM technique along with pipelining to increase our performance about 5x and get within 85% of state-of-the-art (SOTA).

Kernel 5: multicast and 2xSM MMA

Since NVIDIA’s Hopper generation, Streaming Multiprocessors (SMs) can be grouped and Cooperative Thread Arrays (CTAs) within the same SM group can access each other’s shared memory (also known as distributed shared memory access). This brings up two advanced optimizations on Blackwell:

Tensor Memory Accelerator (TMA) multicasting—supported since Hopper: SMs collaborate on loading a tile into shared memory.
2xSM Matrix Multiply-Accumulate (MMA): 2 SMs’ tensor cores collaborate on one large MMA operation using inputs in SMs’ shared memory.

Let’s examine both techniques and see how they are reflected in code. The first thing we need to do is inform the code about the size of the cluster (the cluster_shape). This can be done in Mojo using the @__llvm_metadata decorator:

@__llvm_metadata(`nvvm.cluster_dim`=cluster_shape)
fn blackwell_tma_pair_umma_kernel[
 a_type,
 ...other parameters...,
 cluster_shape
]

The above sets the “CTA cluster” launch shape for the kernel at compile time. CTAs within in the same cluster can access to each others’ shared memory.

CTA memory multicasting

To understand memory multicasting, let’s take a simple example, and examine what we’d have to do without the multicasting feature. For visualization, we will use A, B, and C as 256x256 matrices. In this case, we will launch 4 CTA’s.

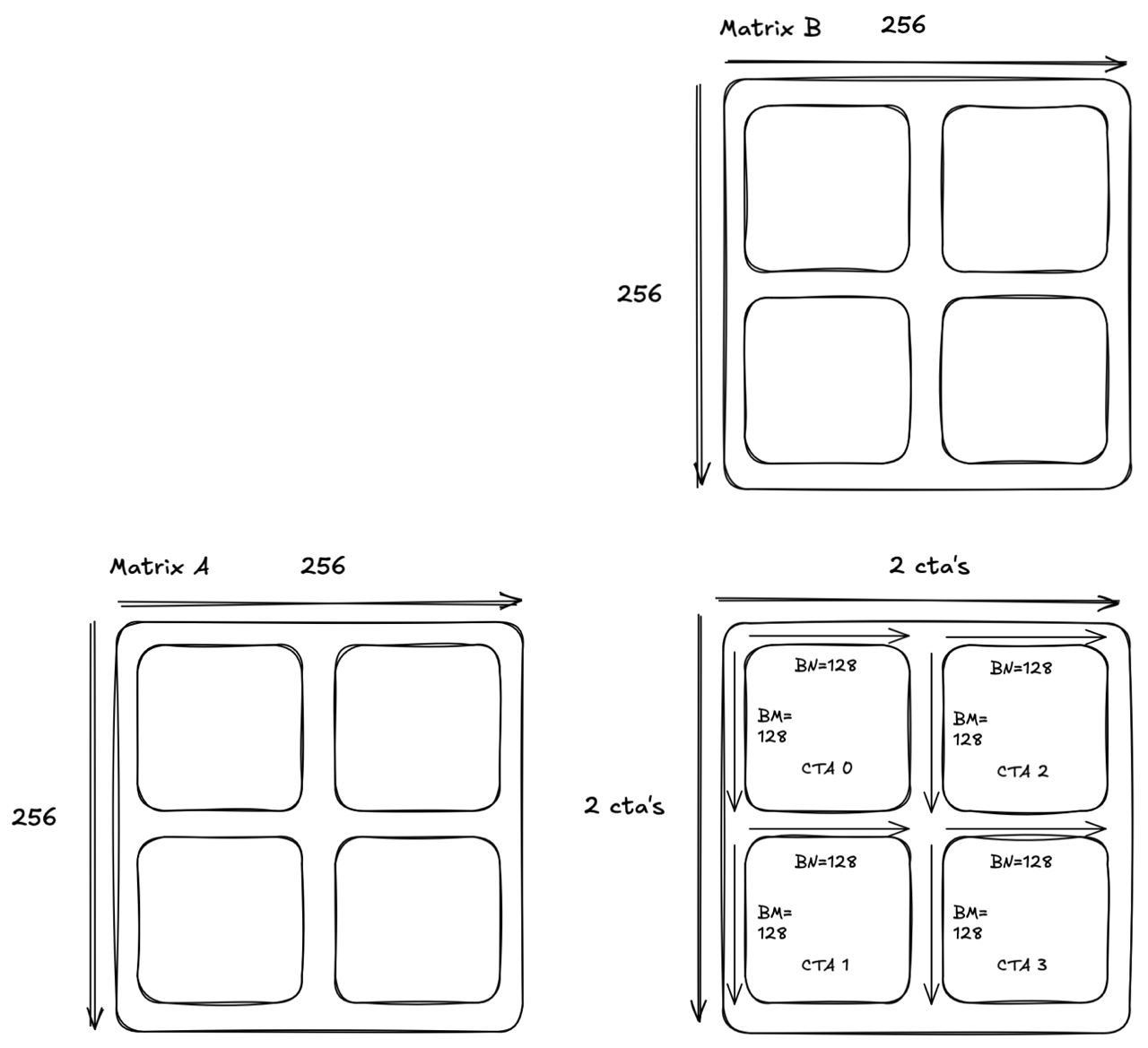

Figure 2: matrix multiplication of two 256x256 matrices with 4 CTAs

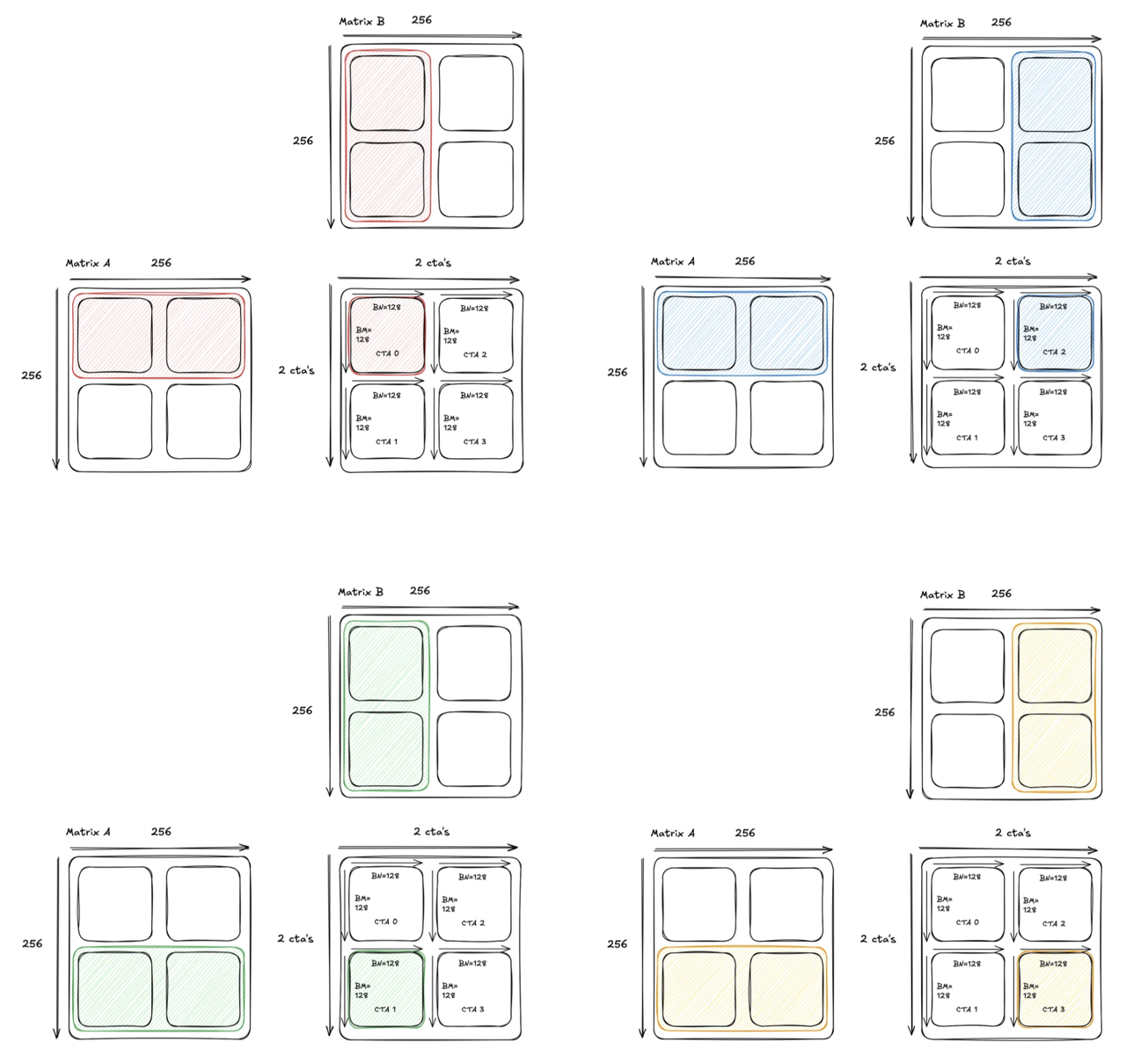

Each CTA will compute a 128x128 tile. Let’s examine which tiles each CTA loads throughout K/BK :

Note the redundancy in the memory loads. This is similar to the redundancy we noticed at the beginning of the blog series, but this time the redundancy is occurring at tile granularity instead of element granularity.

How can we mitigate this? If we group these 4 CTAs into a 2x2 cluster, the SMs can now access each others’ shared memory, which allows each SM to load a tile from global memory and then broadcast the memory to its neighbors.

With this capability, we can adjust our load strategy and have the two CTA’s along the same row load exactly one half of the tile from A, and to broadcast that half to their neighbor. That way, both CTA’s do half the loads while still getting the full tile. Visually, this looks like:

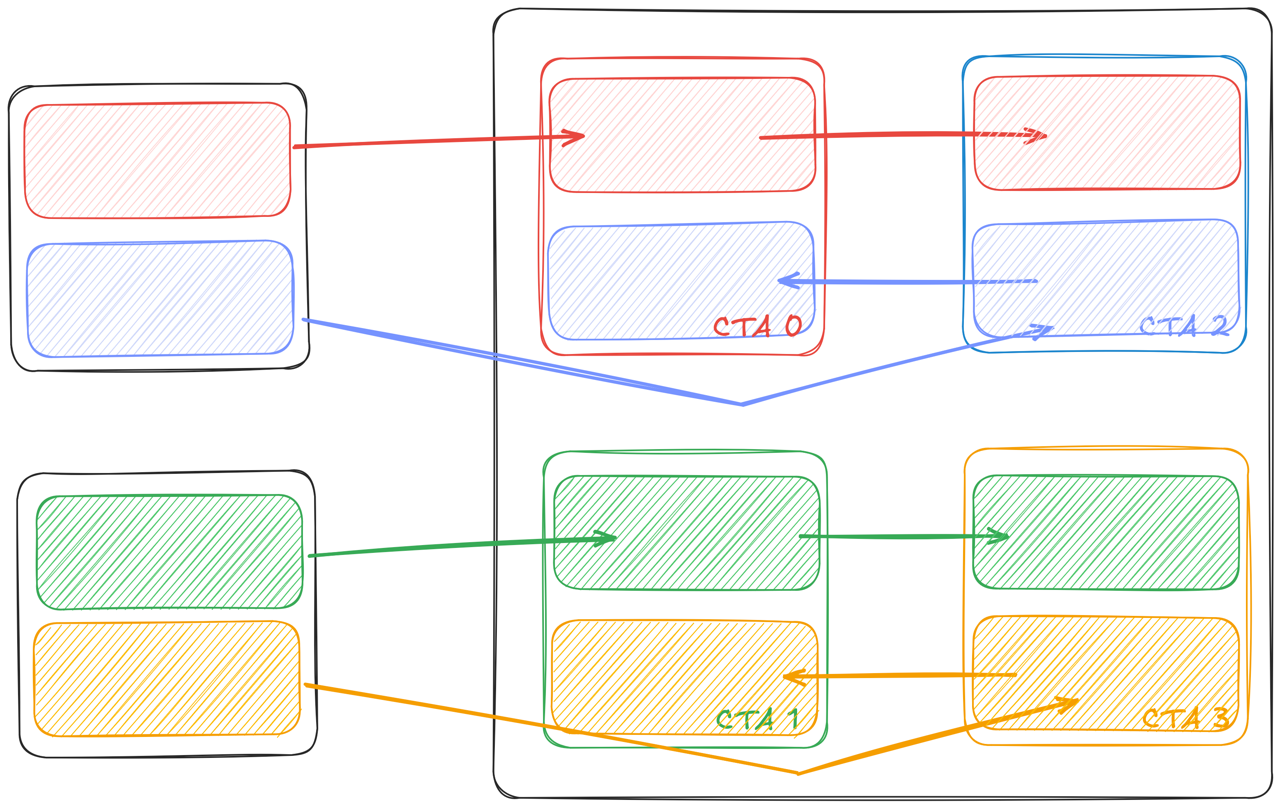

Figure 4: CTAs multicasting tile rows of A

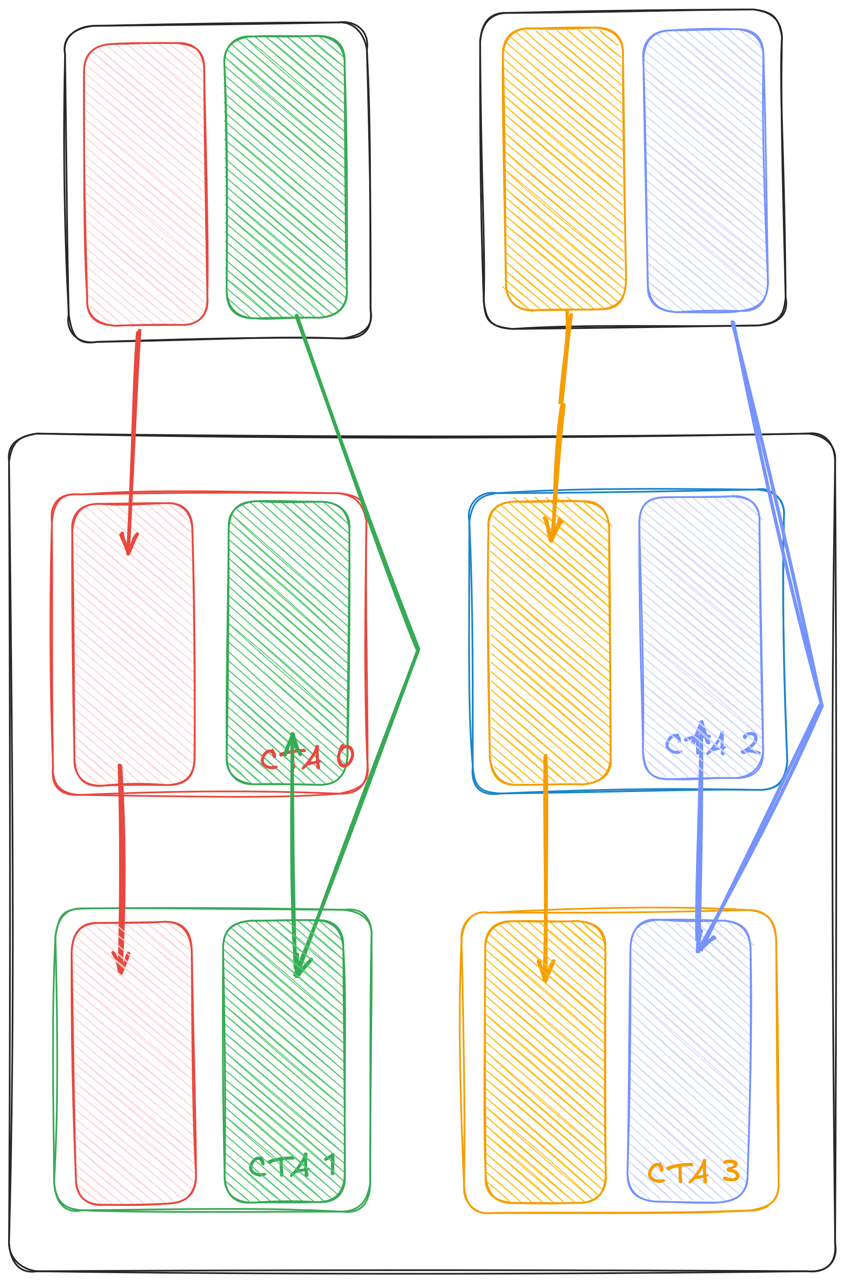

Figure 5: CTAs multicasting tile columns of B

This technique is called multicasting and is scalable. For example, when launching a 4x4 cluster we’d make each CTA load a half of its tiles and get the rest of the data from its peers. Let’s look at how this looks in Mojo code. We begin by declaring the TMA ops on the host side:

a_tma_op = create_tma_tile[
    (BM // cluster_shape[1], BK), swizzle_mode=a_swizzle
](ctx, a)

b_tma_op = create_tma_tile[
    (BN // cluster_shape[0], BK), swizzle_mode=b_swizzle
](ctx, b)

Since each CTA will slice the shared memory tiles for A and B and broadcast them to corresponding peer CTAs, we divide the TMA tile by the cluster dimension. In the GPU kernel, we launch the multicast load using:

if elect_one_thread:
   ....
   a_tma_op.async_multicast_load(
       a_smem_slice,
       tma_mbar[0],
       (UInt(i * BK), UInt(a_gmem_slice_coord)),
       a_multicast_mask,
   )

The API is similar to the async_load TMA API we showed in our last blog but with a few key differences, discussed in the following paragraphs.

First, there is an additional TMA mask a_multicast_mask. The TMA mask is a 16 bit value describing the CTA index involved in the load. Each bit stands for one CTA and there can be at most 16 CTAs in one cluster. For example, in the above CTA 0 and 2 multicast the A tile so the CTA masks are both 0b101. In Mojo we can compute that via:

var rank_m = block_id_in_cluster.x
# CLUSTER_M and CLUSTER_N are cluster dimensions
@parameter
for i in range(CLUSTER_N):
    a_multicast_mask |= 1 << (i * CLUSTER_M)
a_multicast_mask <<= rank_m

The layout tensor a_smem_slice is sliced from the original tile by offsetting the base pointer:

alias a_tma_load_size = a_desc_layout.size()
var rank_n = block_id_in_cluster.y
var a_smem_slice = type_of(a_smem_tile)(
    a_smem_tile.ptr + rank_n * a_tma_load_size
)

We also update the corresponding coordinates in global memory for this tile slice:

# Number of rows per slice
alias a_tma_rows = a_desc_layout.shape[0].value()
a_gmem_slice_coord = block_idx.x * BM + Int(rank_n) * a_tma_rows

2xSM MMA

We have shown how distributed shared memory and multicast can help reduce the data volume from global memory to shared memory. However there is still one limitation—the tiles are still duplicated in the distributed shared memory. Looking into CTAs 0 and 1 in the previous example, we see both CTAs keep a copy of BNxBK tile in shared memory, as shown in the left figure below. Given each CTA has access to the other’s shared memory, saving two copies of the same tile is a waste of resources.

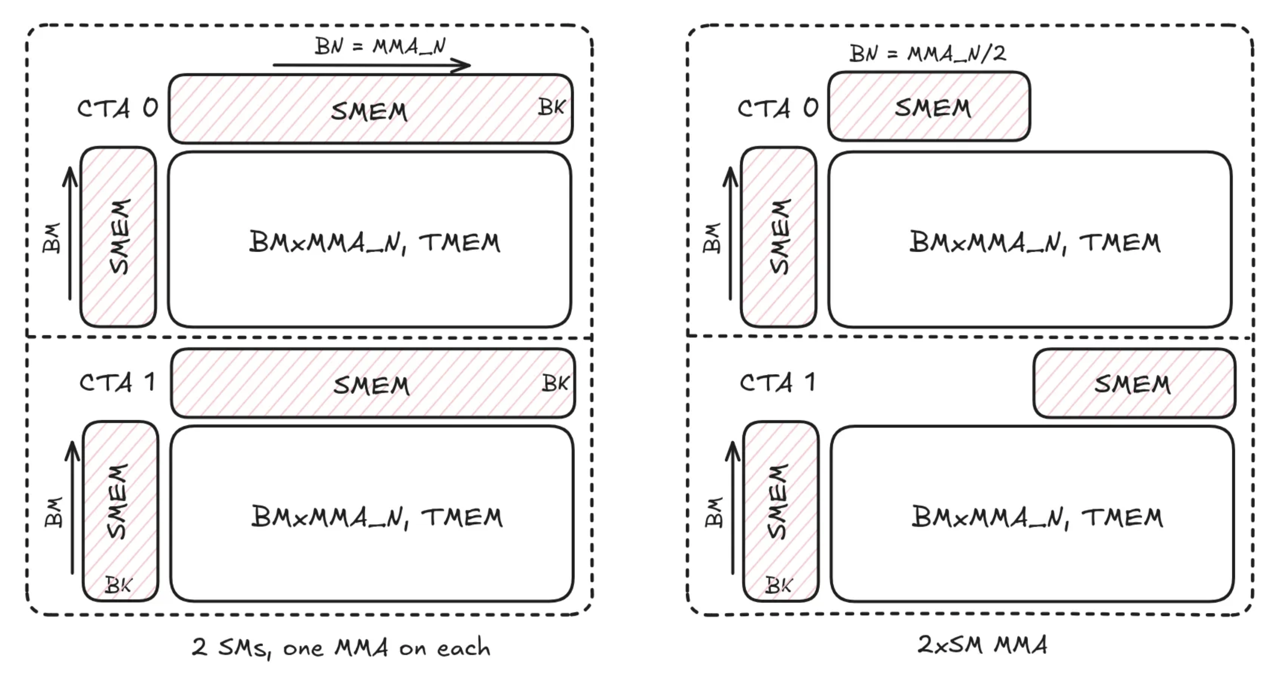

Figure 6: duplication of tiles in distributed shared memory

Blackwell’s 2xSM MMA instruction (tcgen05.mma.cta_group::2) is designed to address this problem. As shown in right figure above, CTAs 0 and 1 works as a pair and each only loads half of the B tile. The 2xSM MMA instruction sees both halves in shared memory and coordinates the tensor cores on both SMs to complete MMA operation as large as two single SM MMAs. Comparing the left and right figures above, the 2 SMs are calculating the same MMA workload 2*BM x MMA_N x BK , where MMA_N denotes the N dimension of MMA shape, and producing the same result, however the 2xSM instruction reduces the shared memory usage for the B tile by half.

Comparing to multicast load with single SM MMA, 2xSM MMA reduces shared memory traffic in two ways. First, CTAs 0 and 1 still load the same half of the B tile as in multicast load (see Figure 5) but it’s only a regular TMA transfer, i.e. the multicast step is omitted. Moreover, the traffic from shared memory to tensor memory for the B tile is also halved as we only save one copy of it in the distributed shared memory.

The code to launch 2xSM MMA is quite similar to launching single SM MMA (see our previous blog), with the exception of using elect_one_cta . Since two SMs collaborate on one MMA operation, only one CTA should launch the instruction and that’s the CTA with even ID in each pair of CTAs. Hence, the elect_one_cta is a predicate to select the launching CTA (also called the leader CTA).

if elect_one_cta:
    # wait for data arriving in shared memory
    ...
    if elect_one_thread:

      @parameter
    for j in range(num_k_mmas):
        var c_scale = 0 if i == 0 and j == 0 else 1
        alias idx = IntTuple(0, MMA_K * j)
        alias a_offset = a_smem_layout(idx) * sizeof[a_type]()
        alias b_offset = b_smem_layout(idx) * sizeof[b_type]()

          mma[cta_group](
              adesc + a_offset,
              bdesc + b_offset,
              tmem_addr,
              idesc,
              c_scale=c_scale,
          )
          mma_arrive_multicast[cta_group](mma_mbar, c_mma_mask)

The mma function above will invoke the tcgen05.mma.cta_group::2 instruction when cta_group is 2. We also change the arrive function from mma_arrive (last blog) to mma_arrive_multicast , which takes cta_group and signals the leader CTA’s memory barrier when cta_group=2.

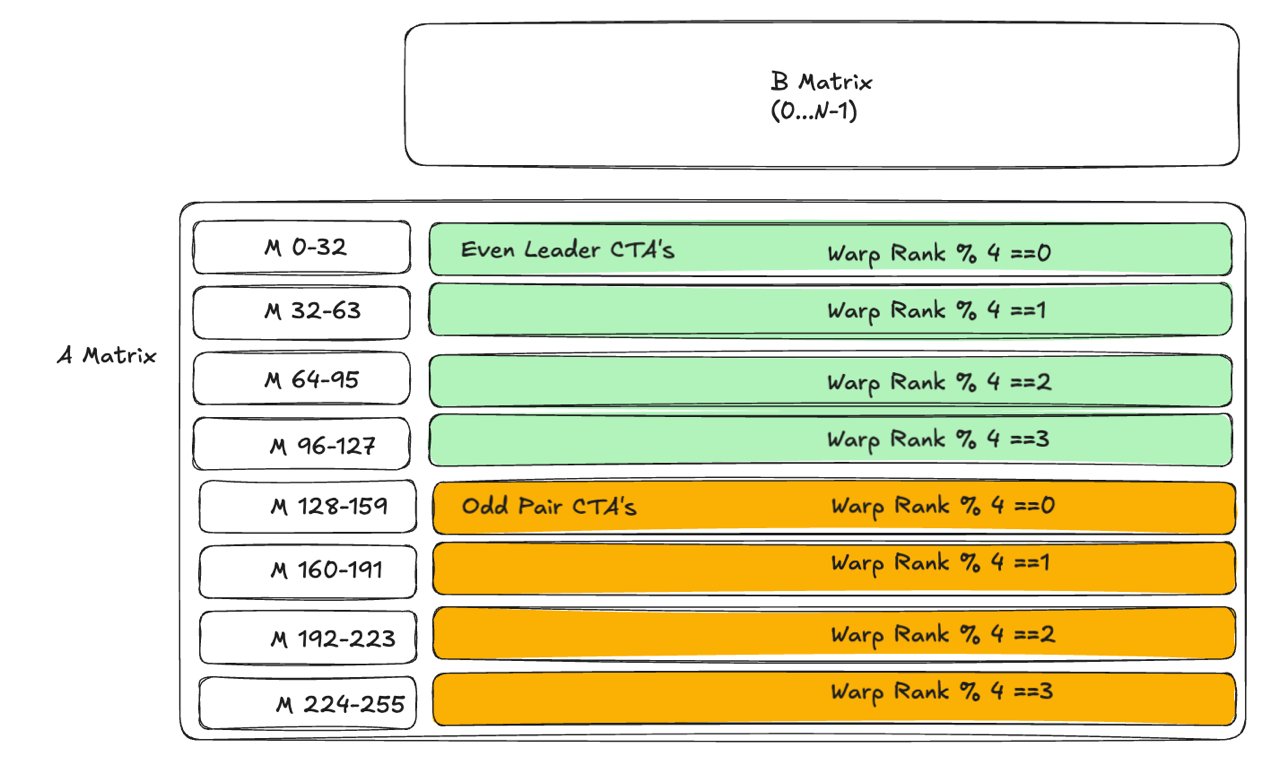

Tensor memory layout

With 2xSM MMA instruction, the two CTAs partition the M dimension (MMA_M) evenly (BM = MMA_M/2 ) and each has half of the result of shape BM x MMA_N in tensor memory. The instruction supports MMA_M values of 128 and 256. For MMA_M=256, the TMEM layout for each half is the same as single SM MMA as shown in Figure 7 below. The top half is stored in the leader CTA with the lower half in its pair CTA. The output to global memory is the same as in kernel 4 from our last post.

For MMA_M = 128, the layout is different than above. We skip the details here and refer the reader to the code since MMA_M = 128 is less important in production.

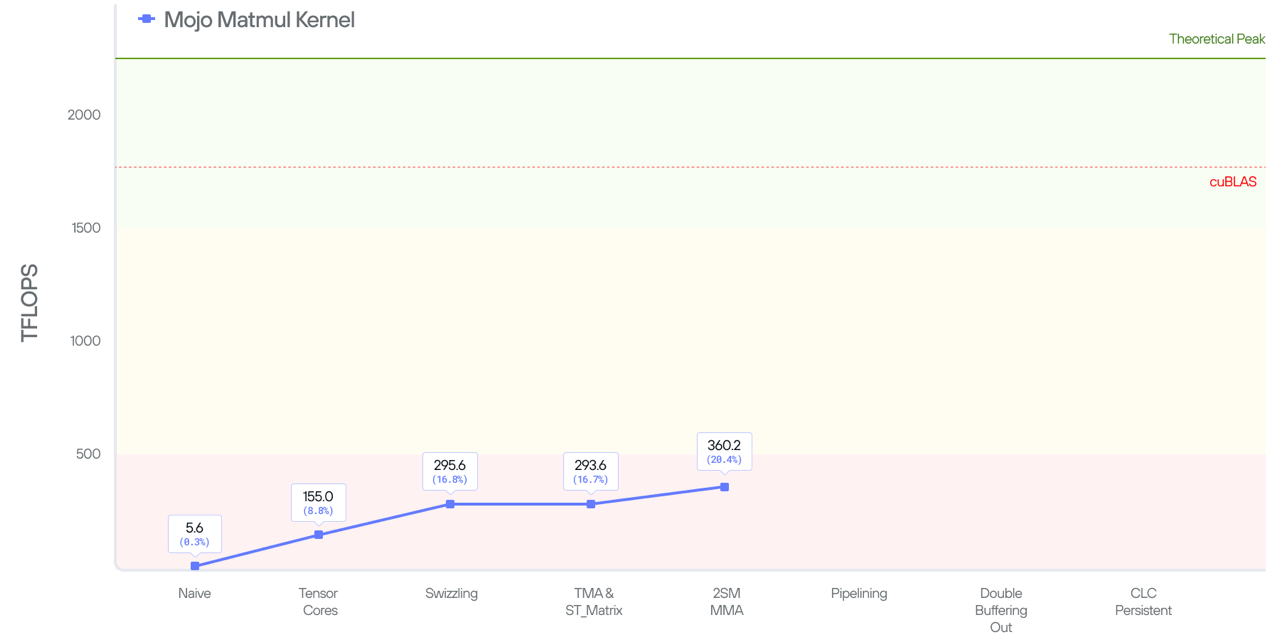

Figure 8: 20% SOTA performance with CTA memory multicast and 2xSM MMA

With this implementation, we are now at 360.2 TFLOPs and about 20% of our SOTA goal. If we look at the profile, even though we are using the advanced MMA instruction, we’re still limited by global memory’s throughput because the computation still waits for data transfer to complete. Our next optimization is going to remove this barrier and increase the overlap between computation and memory transfer.

Kernel 6: 2SM pipelining

To keep the code clean throughout the explanation of this kernel, we wrap up the logic we use to load tiles into shared memory through a function call to load_AB(), and we wrap up the logic for calling the MMA through a function call consume_AB(). We further abstract the code to write it out with a function call to store_C.

If we operate at this granularity, the previous kernel performs the following:

for i range(K/BK):
 # Issue asynchronous TMA load
 load_AB()
 # Wait on barrier until they're loaded
 tma_mbar[0].wait(tma_phase)
 # Issue asynchronous MMA
 consume_AB()
 # Wait on barrier until they're consumed
 mma_mbar[0].wait(mma_phase)

store_C() # Write the results out

At any given moment, half of our hardware is idle. Either the tensor cores are waiting for the data to arrive or the TMA is waiting for for MMA to finish so that the shared memory buffer becomes available. The data dependence prevents a CTA from leveraging both hardware units simultaneously.

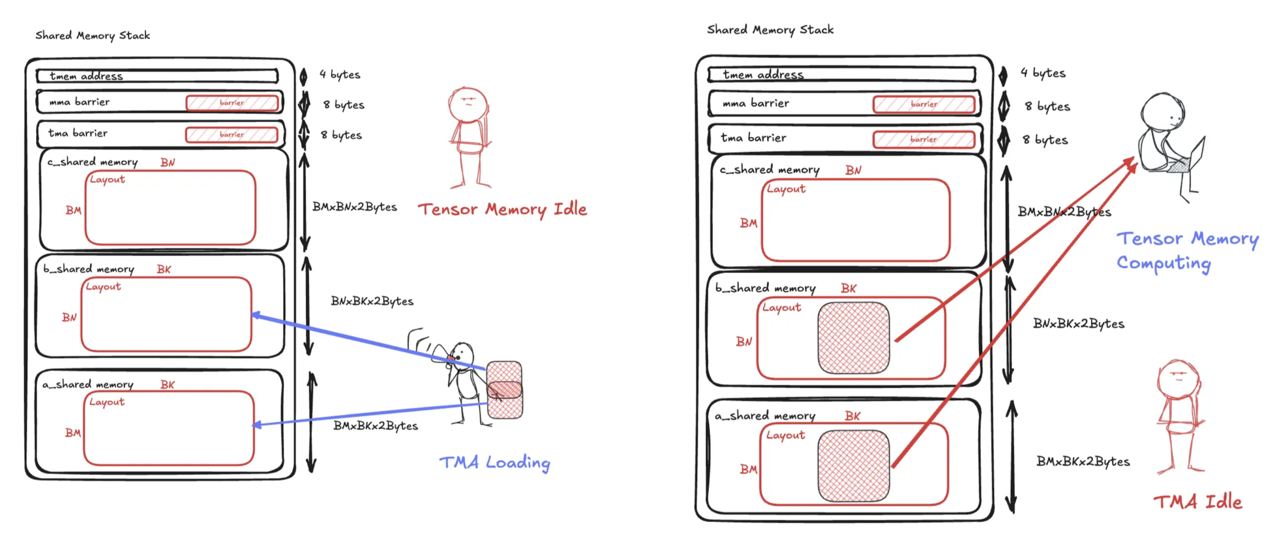

Figure 9: data dependent contention for CTAs

Pipelining MMA and TMA

The classic algorithm to overcome idleness is to introduce multiple buffers in shared memory and overlap MMA with TMA via pipelining. To exploit this, we need to first check our shared memory usage.

On a Blackwell GPU, the kernel can access up to up to 227 KB shared memory (shared memory and L1 cache combined provide one with 228 KB cache memory, but 1 KB has to be reserved for L1). So far we have the following usage with the largest 2xSM MMA instruction of shape 256x256x16 for BF16:

one A tile: BM x BK x 2B = (MMA_M / 2) * 64 * 2B = 16 KB
one B tile: BN x BK x 2B = (MMA_N / 2) * 64 * 2B = 16 KB
one C tile: BM x MMA_N x 2B = 64 KB

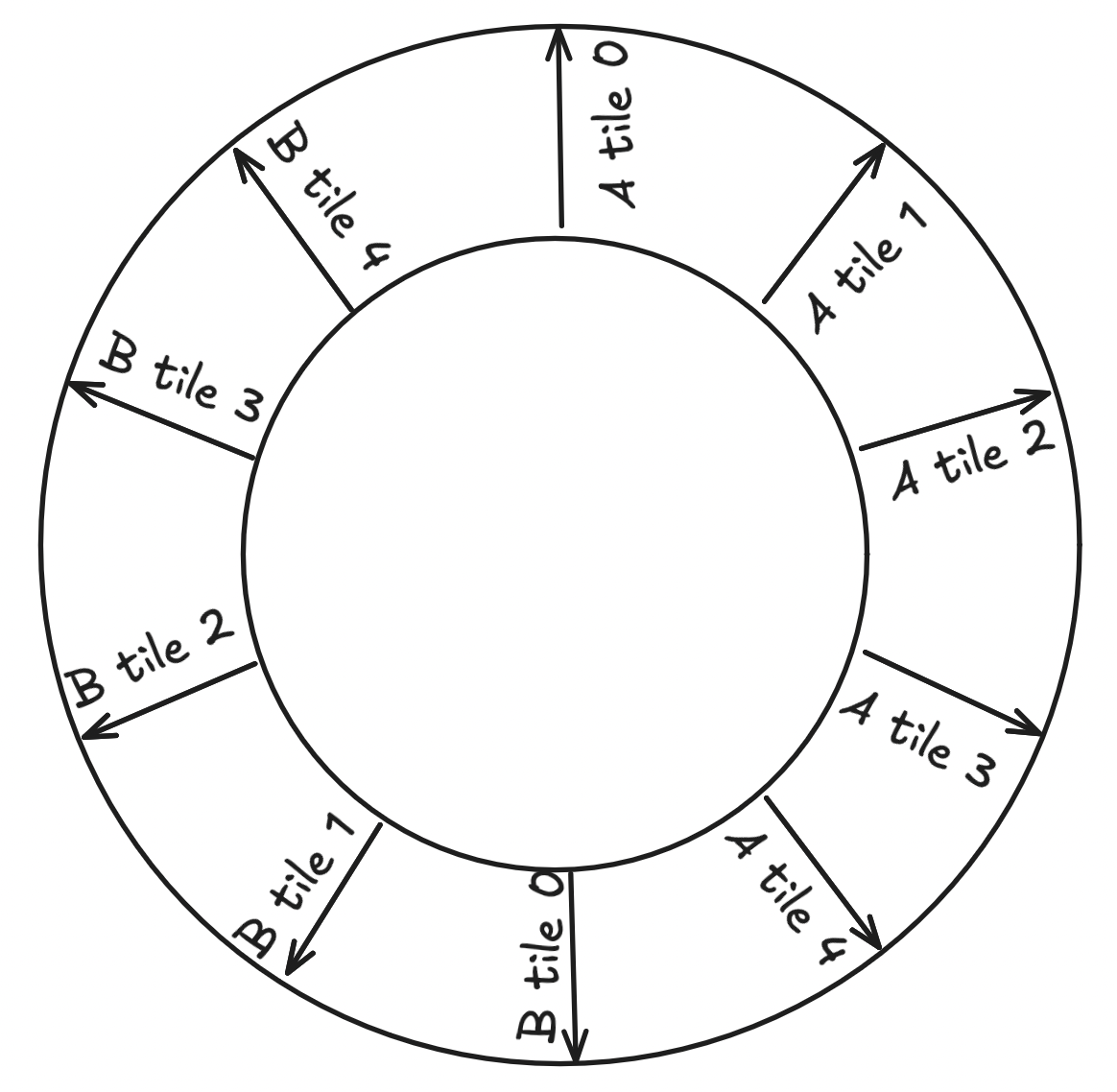

We have used less than half of the capacity. Leveraging the shared memory capacity, we introduce 5 stages and organize them into a circular buffer.

Then we let TMA and MMA iterate through the buffers in parallel such that when MMA is consuming one buffer, another TMA can prefetch data into another buffer for subsequent computation. As a result, we can increase the overlap between computation and communication.

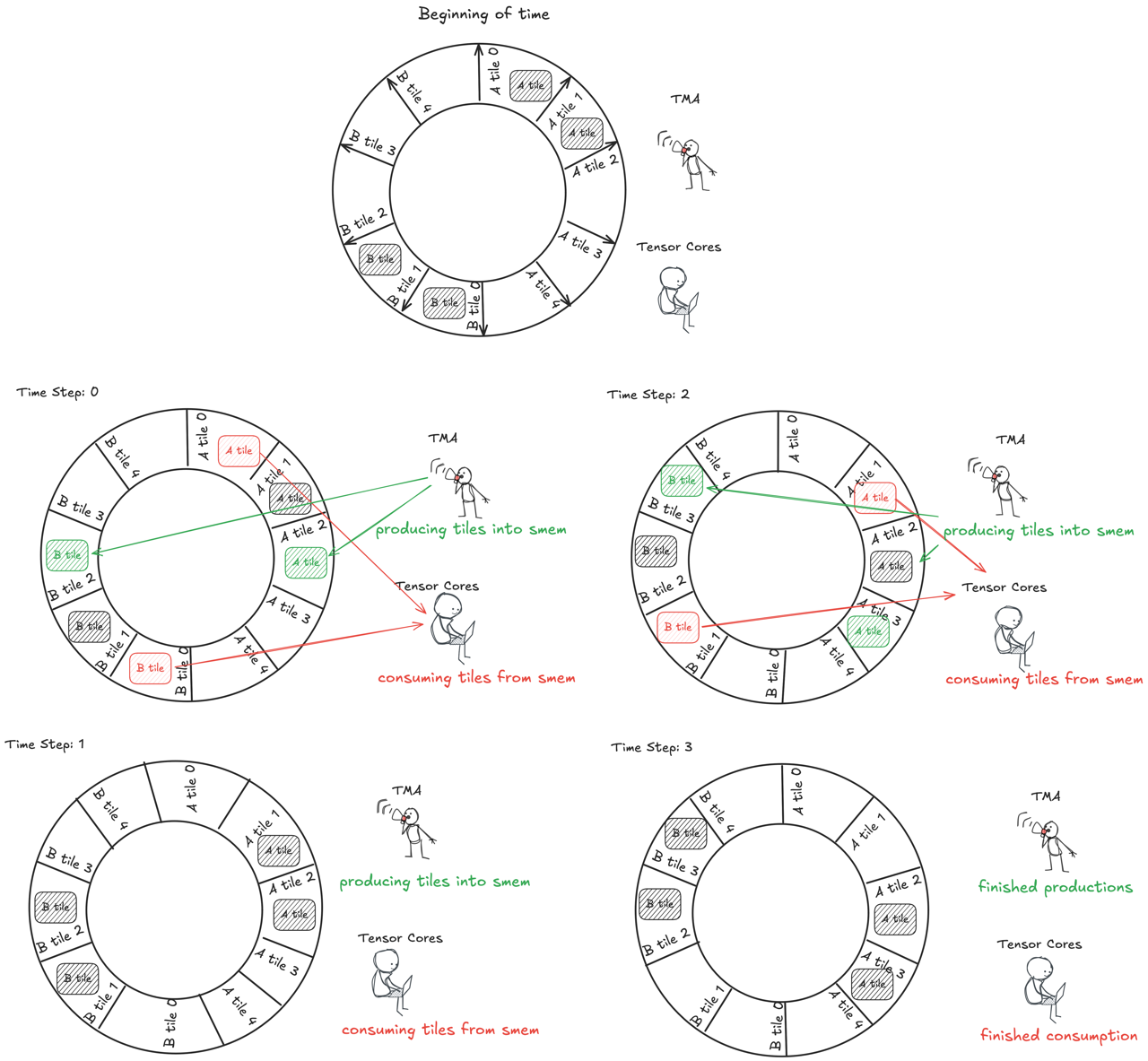

Figure 11: overlapping of communication with computation using a circular buffer

Warp specialization

To implement this pipelined pattern, we need to touch on another important concept—warp specialization. Thus far, we’ve been using 4 warps in previous kernels due to the requirement of loading from TMEM, and TMA and MMA are both launched using thread 0. To have TMA and MMA issued in parallel and operate on different pipeline stages, we need to specialize different warps for each task. This is called warp specialization. The high level code structure is as follows:

    if WarpRole.is_main_load():
        for i in range(num_iters):
            ...
      mma_mbar[stage].wait(phase)
      # issue TMA loads and signals tma_bar
      ...

    if WarpRole.is_mma():
        for i in range(num_iters):
      ...
            tma_mbar[stage].wait(phase)
            # Issue 2xSM MMA and signals mma_mbar
            ...
            mma_arrive_multicast[cta_group](mma_mbar, c_mma_mask)

We specialize one warp for issuing TMA and one for issuing MMA and they iterate through the tiles concurrently. Additionally, we need the warps to inform each other if a tile has arrived or has been consumed and the underlying buffer is ready for new data. This communication is done via memory barriers. In the above, we use the same memory barriers as in previous kernels, however the MMA warp waits on the TMA barrier (signaled by the TMA warp) to query if the input is ready for computation. Similarly, the warp specialized for TMA operations waits on MMA barrier to know if buffer is ready for writing new data.

Output

We still need four warps for using TMEM in the output. Following warp specialization, we specialize four separate warps for output. In the next post, this will be necessary to overlap output with TMA and MMA. We also need another memory barrier to communicate between MMA and Output warps that the MMA results are ready for output. The high level structure becomes something like:

    if WarpRole.is_main_load():
        for i in range(num_iters):
            ...
      mma_mbar[stage].wait(phase)
      # issue TMA loads and signals tma_bar
      ...
    if WarpRole.is_mma():
        for i in range(num_iters):
      ...
            tma_mbar[stage].wait(phase)
            # Issue 2xSM MMA and signals mma_mbar
            ...
            mma_arrive_multicast[cta_group](mma_mbar, c_mma_mask)
        # Signal output warps
        if elect_one_sync():
            mma_arrive_multicast[cta_group](compute_barrier, mma_complete_mask)

    if WarpRole.is_epilogue():
        compute_barrier[].wait()
        # Store result to global memory
        ...

Here the MMA warp additionally signals a new memory barrier, compute_barrier. Then the output warps waits on compute_barrier to ensure the result is ready. The storing part is same as before.

Benchmarking this pipelining strategy increases our performance and puts us at 1429 TFLOPs, or 81% of SOTA.

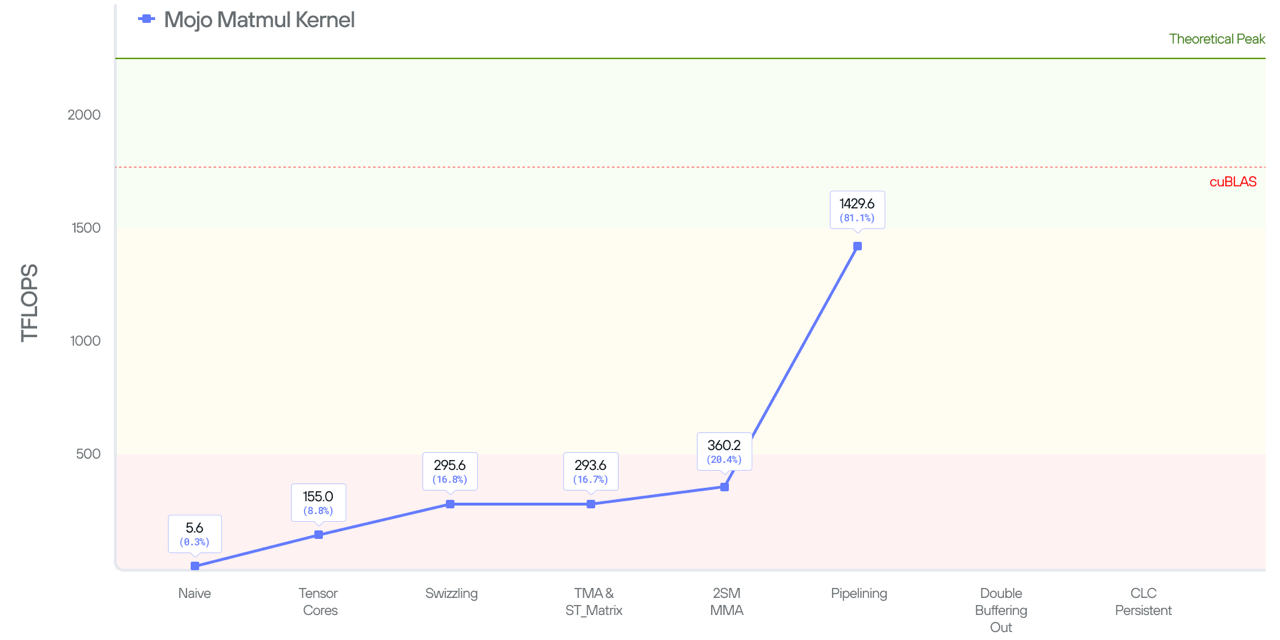

Figure 12: 81% of SOTA performance with 2SM pipelining and warp specialization

Kernel 7: double-buffering the write-out

Thus far we have been optimizing the loading of the data into the matmul, but we can also optimize the storing of the data into the output. First, let’s briefly review how we store the result in TMEM to global memory.

def store_c():
 # move all of tensor memory into registers
 registers = tcgen05_ld[
    parameters
 ](tmem_address)
 # move all of registers into shared memory
 for block_offset in range(BN/TMA_BN):
  for st_matrix_offset in range(TMA_BN//16):
      st_matrix[c_smem_tile, registers]
 # move the entire shared memory tile into global memory
 c_tma_op.async_store(
     c_tma_tile,
     ((block_idx.x * **MMA_N** + thread_idx.x * TMA_BN), (block_idx.y * BM)),
 )

There are three main steps when storing the C data: TMEM to registers, registers to shared memory, and shared memory to global memory. These transfers are executed sequentially due to the data dependence. However, that’s not necessary especially when TMA store is asynchronous. Applying the same idea as before, we can pipeline the TMA and MMA operations.

To do that, we declare two output tiles (called double-buffer) of shape BM x StageN in shared memory and ping-pong between them. For simplicity, we start with stageN = 32 (this is a value that can be tuned). The double-buffer pipeline strategy is illustrated below for two iterations. After stmatrix stores the first output tile to shared memory, we issue the TMA store but don’t block. Instead, we immediately begin loading from TMEM and writing the data into shared memory using the other buffer. Using this scheduling strategy, the TMA store overlaps with the TMEM ⇒ register ⇒ shared memory transfer for the other tile.

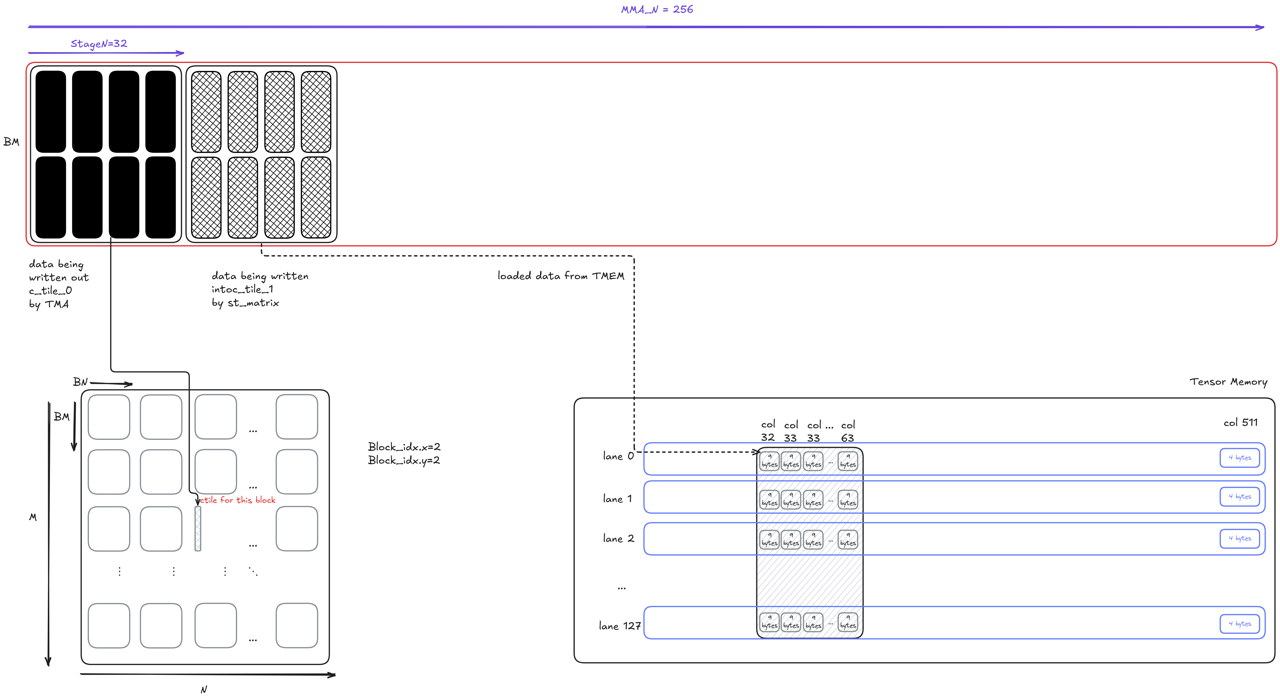

Figure 13: iteration 1 of the double-buffer pipeline

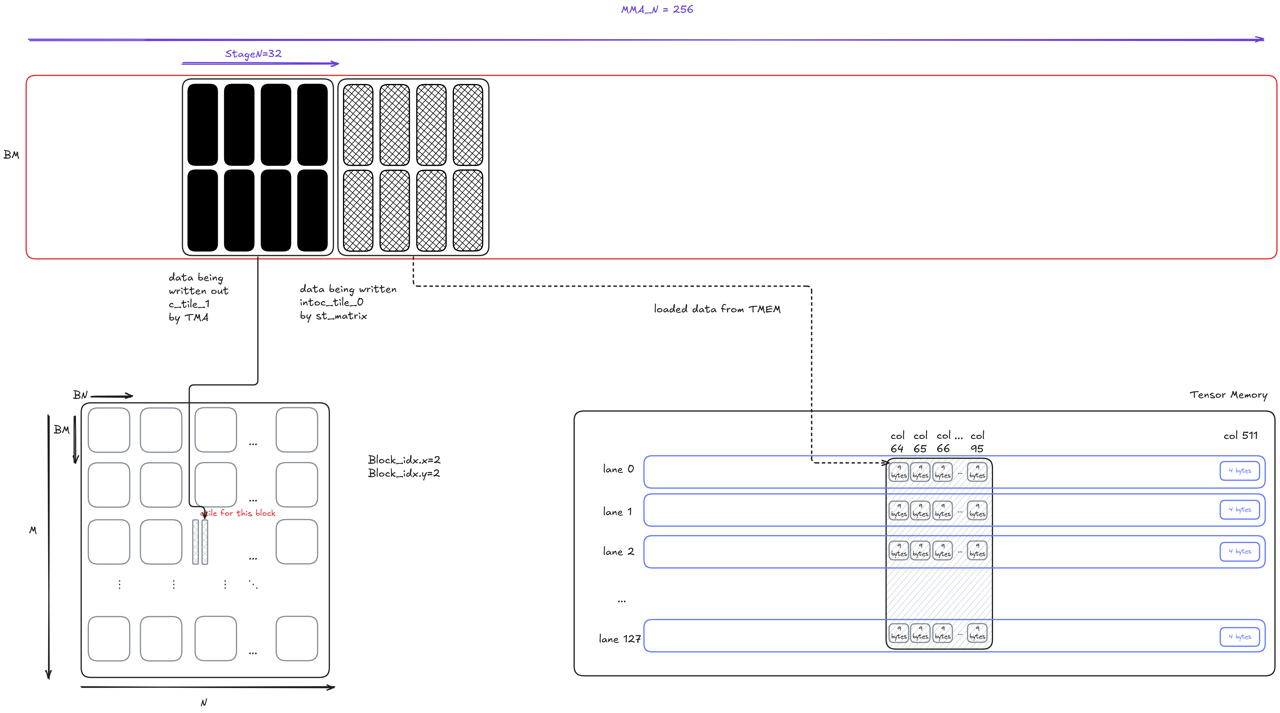

Figure 14: iteration 2 of the double-buffer pipeline

To implement the pipeline strategy in Mojo, we first break down the output into MMA_N / StageN = 8 iterations. At each iteration, we process stageN = 32 columns from TMEM. The TMEM load and stmatrix code is omitted for simplicity, but the code is largely same as in previous kernels with the exception of operating on smaller tiles.

  # Process 32 columns at a time
    alias stageN = 32
    alias num_stages = MMA_N // stageN
    @parameter
    for stage in range(num_stages):
    # Load TMEM
    ...
    # Store to shared memory using stmatrix
    ...
        if elect_one_thread:
      # Issue TMA store
      ...
            c_tma_op.commit_group()

        @parameter
        # Keep one tma store in fly
        if stage < num_stages - 1:
            c_tma_op.wait_group[1]()
        # Last stage guard all tma store to finish
        else:
            c_tma_op.wait_group[0]()

The important part of the code is how we synchronize the TMA stores. Recall that commit_group commits previous TMA stores as one group and wait_group[N] waits until only the last N groups are still on-the-fly (the last N+1, N+2, etc groups are finished). In the code above, the the first iteration does not wait since it can proceed using the second buffer. The second up to num_stage - 1 iterations wait until there is only 1 TMA store on-the-fly. This enables TMA store overlap with the TMEM load and stmatrix in the next iteration. Finally, the last iteration of course waits for all TMA stores to complete.

This pipeline execution comes with an additional (free) benefit. To explain, we need to review our shared memory usage in kernel 5.

5 copies of A and B tiles for pipelining: 5 * (BM + BN) * BK * 2B = 160 KB
C tile for output: BM * BN * 2B = 64 KB
Minor usage for memory barriers, tensor memory address.

The shared memory usage for output takes ~40%. But the kernel now use 2 * BM * StageN * 2B = 16 KB , we can use the saved 48 KB to increase the pipeline depth for more overlap between TMA and MMA.

This optimization gives an additional 64 TFlops speedup and the kernel now reaches 85% of SOTA.

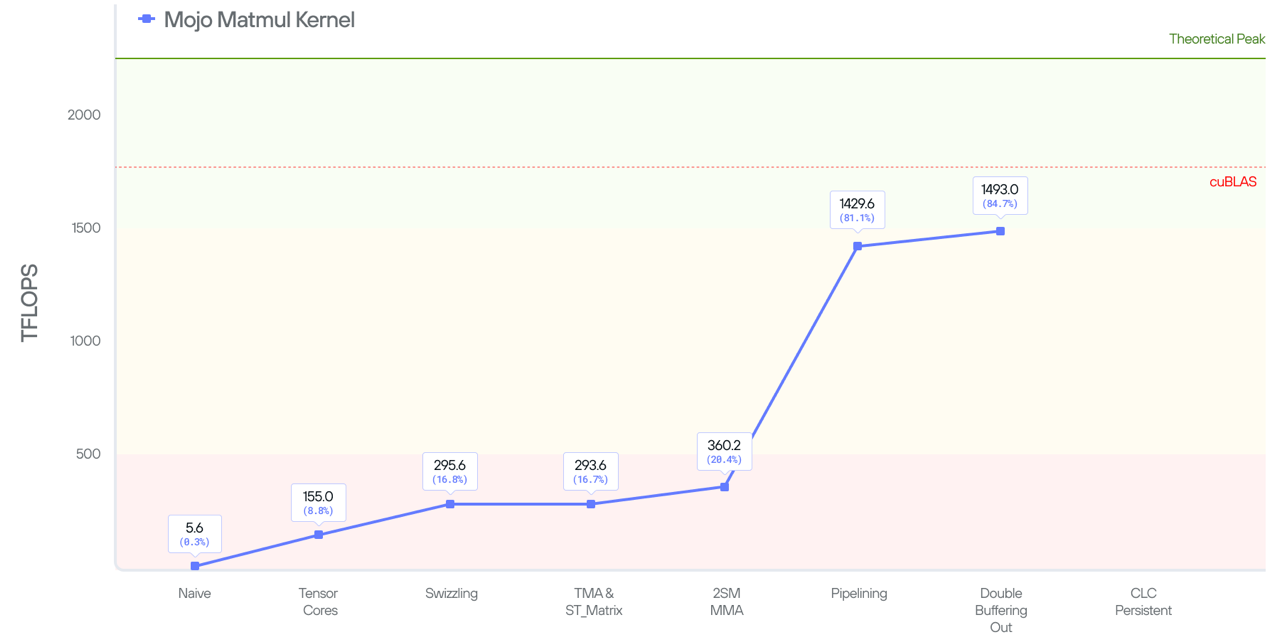

Figure 15: 85% of SOTA performance with double-buffering the write-out

Next steps

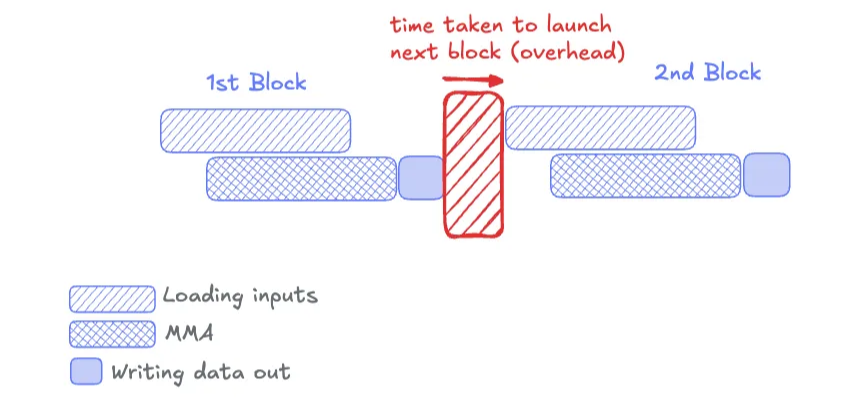

So, how do we get the last 15%? While we have overlaps loading from global memory via overlapping the TMA load and MMA, the overhead of storing to global memory is still outstanding (even though we performed some optimization in kernel 7). We further suffer from the launch overhead between subsequent CTAs dispatches. Pictorially, the overhead is:

In the next blog post, we will solve both limitations by introducing persistent kernel using another advanced Blackwell feature—cluster launch control (CLC), and demonstrate how we can close the gap to achieve SOTA.
