GenAI Tech Talk: Paged Attention

• Authors: Austin Doolittle and Brian Zhang
• Date: January 30, 2025

Introduction

KV Caching is an essential component of an optimal LLM inference solution, as it enables memoization of previous Key and Value projections for each transformer layer such that we avoid re-computing these projections during each invocation of the model during autoregressive generation.

A naive way to manage this KVCache is to pre-allocate a chunk of memory up to the max_seq_len supported by the model and assign it to each active sequence being generated, however this can lead to inefficient use of memory.

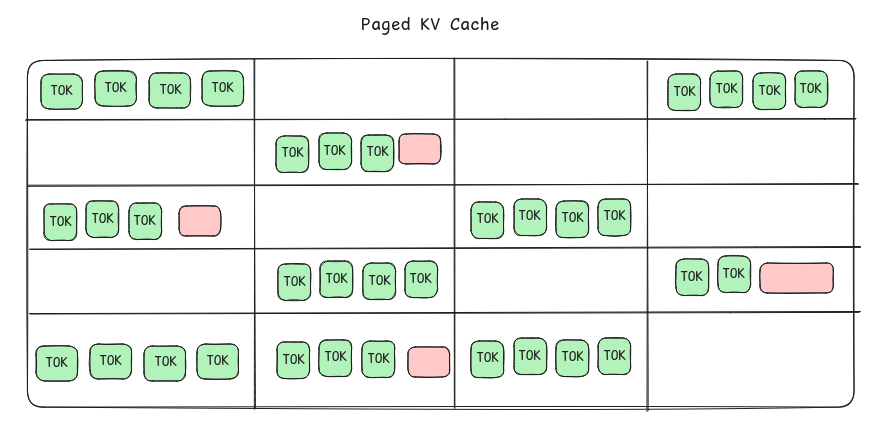

An example of memory inefficiency in a KVCache.

The above shows a KVCache where each sequence along the vertical axis is allocated enough memory to store max_seq_len tokens on the horizontal axis. The green pictured tokens are actively used memory containing KV projections for each sequence, the red portions are areas of unused memory that is unavailable for other sequences to use for their Key and Value projections.

PagedAttention is an approach invented by the creators of vLLM which borrows from virtual memory concepts in operating systems. The approach fragments the memory backing the KVCache into pages and strings together multiples of these fragments into logically contiguous buffers. This approach brings other benefits, like the ability to oversubscribe the memory allocated for the KVCache to maintain more active sequence generation tasks and the ability for sequences to share Key and Value projections if they have the same prompt prefix.

This doc will describe PagedAttention in more detail,and outline how we’ve added support for PagedAttention in our codebase.

Resources

• Efficient Memory Management or Large Language Model Serving with PagedAttention
• vLLM and PagedAttention: A Comprehensive Overview

What is Paged Attention?

Block table translation in vLLM. Source: Kwon, et. al., Figure 6

As mentioned previously, PagedAttention borrows from virtual memory concepts in modern operating systems. The KVCache is physically allocated as a region of pages containing a fixed number of tokens, called the page_size. In the above example, this physical allocation is on the right hand side and has a page_size of 4 tokens. The kernel is presented with a logical view of the KVCache via a block table which maps logical token indices to physical locations in device memory. As new tokens are generated, new Key and Value cache projections are written into the physical pages, and as we fill pages, our KVCache Manager will assign more unused pages for the sequence to continue filling in.

With this fragmentation, we can take the example provided in the introduction and show how this approach can free up memory for other sequences to leverage for their KVCache.

One trade-off this solution comes with is slower kernel latency. We are adding an additional call to device memory into the lookup table before a subsequent call to device memory to retrieve values for the given page. Memory bandwidth is generally a bottleneck, and inserting more calls to memory in our kernel has been measured slowing down MHA kernel execution by up to 13% (source: Prabhu, et. al., section 3.3.1). This latency hit is generally compensated by the other benefits that PagedAttention unlocks.

How have we implemented Paged Attention?

The MAX Framework implementation of PagedAttention relies on our existing use of mo.opaque to represent the KVCache. We’ve added a new PagedKVCache abstraction which adheres to the same interfaces as our existing ContiguousKVCache and ContinuousBatchingKVCache implementations, which enables each KVCache implementation to leverage the same MHA and Matmul kernel implementations.

The PagedKVCache implementation includes a pointer to the buffer containing all KVCache pages, and a page table which is responsible for translating logical token indices into physical locations in device memory. The code here is simplified for demonstration purposes, for a deeper dive check it out in the Modular GitHub repository.

PagedKVCache Code

struct PagedKVCache[
    type_: DType,
    kv_params_: KVCacheStaticParams,
    page_size: Int,
](KVCacheT):

    """blocks has shape: [total_num_pages, num_layers, 2, page_size, num_heads, head_size]"""
    var blocks: NDBuffer[Self.type, 6]

    """lookup_table has shape [batch_size, ceildiv(longest_seq_len, page_size)]"""
    var lookup_table: NDBuffer[DType.uint32, 2]

    @always_inline
    fn _get_idx(
        self, bs: Int, head_idx: Int, tok_idx: Int, head_dim_idx: Int
    ) -> IndexList[6]:

        lut_block_index, tok_in_block_idx = divmod(tok_idx, self.page_size)
        block_idx = Int(self.lookup_table[bs, lut_block_index])
        return IndexList[6](
            self.layer_idx,
            self.kv_idx,
            block_idx,
            tok_in_block_idx,
            head_idx,
            head_dim_idx,
        )

    fn load[
        width: Int
    ](self, bs: Int, head_idx: Int, tok_idx: Int, head_dim_idx: Int) -> SIMD[
        Self.type, width
    ]:
        var idx = self._get_idx(bs, head_idx, tok_idx, head_dim_idx)
        return self.blocks.load[width=width](idx)

    fn store(
        self,
        bs: Int,
        head_idx: Int,
        tok_idx: Int,
        head_dim_idx: Int,
        val: SIMD[Self.type, *_],
    ):
        var idx = self._get_idx(bs, head_idx, tok_idx, head_dim_idx)
        self.blocks.store(idx, val)

Our kernels can then be parameterized on the KVCacheT trait and implemented in a generic fashion (Code Link):

Kernel Code Example

@always_inline
fn _fused_qkv_matmul_kv_cache_impl[
    ...
    collection_t: KVCollectionT,
    ...
](
    hidden_state: NDBuffer[type, 3, hidden_state_shape],
    weight: NDBuffer[type, 2, weight_shape],
    kv_collection: collection_t,
    layer_idx: UInt32,
    output: NDBuffer[type, 3, output_shape],
    context: Optional[DeviceContext],
) raises:

    alias kv_params = cache_t.kv_params
    alias N = weight_shape.get[0]()
    alias K = weight_shape.get[1]()

    var SEQ_LEN: UInt = hidden_state.dim[1]()

    var q_dim = output.dim[2]()
    var k_dim = kv_params.head_size * kv_params.num_heads
    var qk_offset = q_dim + k_dim

        # k and v_cache are implementations of KVCacheT
    var k_cache = kv_collection.get_key_cache(Int(layer_idx))
    var v_cache = kv_collection.get_value_cache(Int(layer_idx))

    @parameter
    @__copy_capture(q_dim, qk_offset, SEQ_LEN, k_cache, v_cache)
    fn write_to_cache[
        type_: DType, width: Int, *, alignment: Int = 1
    ](idx: IndexList[2], val: SIMD[type_, width],):
        b_idx, t_idx = divmod(UInt(idx[0]), SEQ_LEN)
        if idx[1] < q_dim:
            output.store[width=width, alignment=alignment](
                Index(Int(b_idx), Int(t_idx), idx[1]),
                rebind[SIMD[type, width]](val),
            )
            return

        var h_idx: UInt
        var hd_idx: UInt
        var cache: cache_t
        var output_val = val
        if idx[1] < qk_offset:
            cache = k_cache
            h_idx, hd_idx = divmod(UInt(idx[1]) - q_dim, kv_params.head_size)

        else:
            cache = v_cache
            h_idx, hd_idx = divmod(
                UInt(idx[1]) - qk_offset, kv_params.head_size
            )

        var valid_len = cache.cache_length(b_idx)
        var cache_t_idx = t_idx + valid_len
        cache.store(
            b_idx,
            h_idx,
            cache_t_idx,
            hd_idx,
            rebind[SIMD[cache_type, width]](output_val),
        )

    _matmul_common[target=target, elementwise_lambda_fn=write_to_cache](
        hidden_state, weight, context
    )

We’ve also implemented a new PagedKVCacheManager class which is responsible for keeping records of which KVCache pages contain projections for which sequences of tokens. When we call next_token in the TokenGenerator, this new manager will check the tokens in incoming sequences and assign pages to write new projections into. This logic is a bit harder to boil down to pseudocode, but you can check the actual implementation out here Code Link.

Our new PagedKVCacheManager also implements other optimizations that PagedAttention unlocks, which includes prefix caching and eviction. We’ll discuss those features in more depth in the next section.

What is Prefix Caching?

Prefix Caching enables more efficient usage of the PagedAttention KVCache by allowing reuse and sharing of KV projections between different sequences when these sequences share a common prefix.

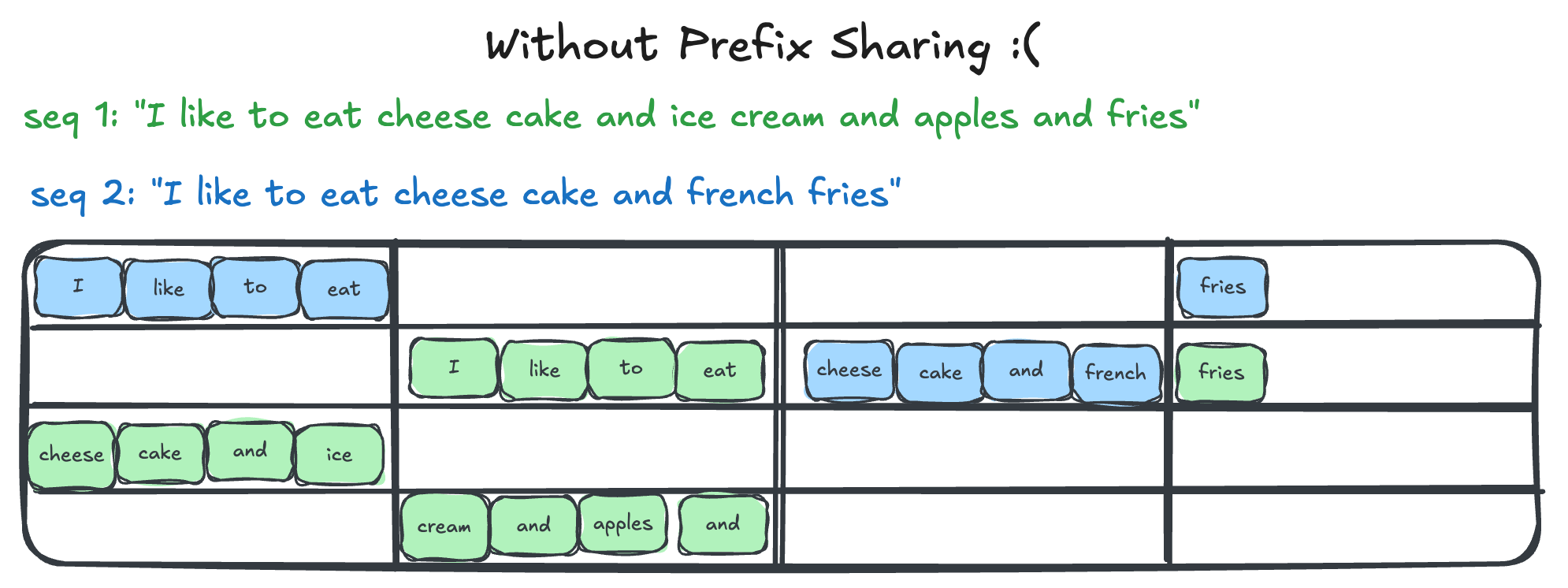

Paged attention without prefix caching

In the above diagram, we show the layout of a PagedAttention KVCache without prefix sharing for two sequences when the page_size (a.k.a. block_size) is 4 tokens. As the two sequences share a common prefix, the contents of their first page is identical. Both seq 1 and seq 2’s first page stores KV projections for the tokens “I like to eat”. However, it is a waste to have two pages containing the same data.

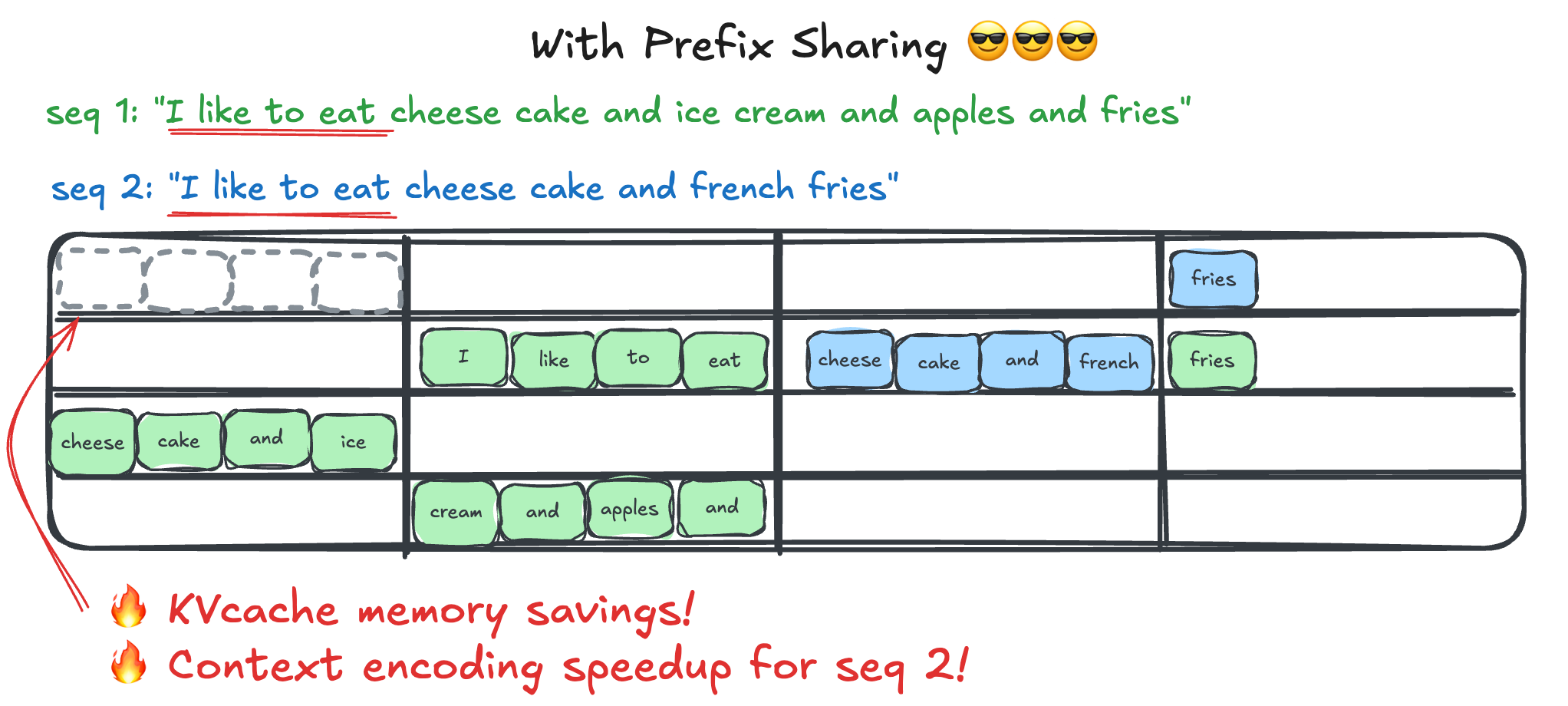

Paged attention with prefix caching

Through prefix caching, we can eliminate this extra page. When seq 2 initiates context encoding, it can first query the prefix cache and determine whether it actually needs to allocate a new page or there already is one it can reuse. In this example, seq 2 can use the existing page created by seq 1 for its first 4 tokens.

How does this help?

Prefix caching yields two main benefits:

• Storage: We reduce storage usage in the KVCache by allowing pages to be shared. This allows us to make better use of our cache and potentially schedule larger batches. Large batches can yield improved throughput.
• Speed: By having seq 2 read the existing KV projections instead of re-computing them, we reduce the work for the kernels during the context encoding (CE) step of seq 2. This speedup in CE allows us to improve our bottom line metric of TTFT (time to first token).

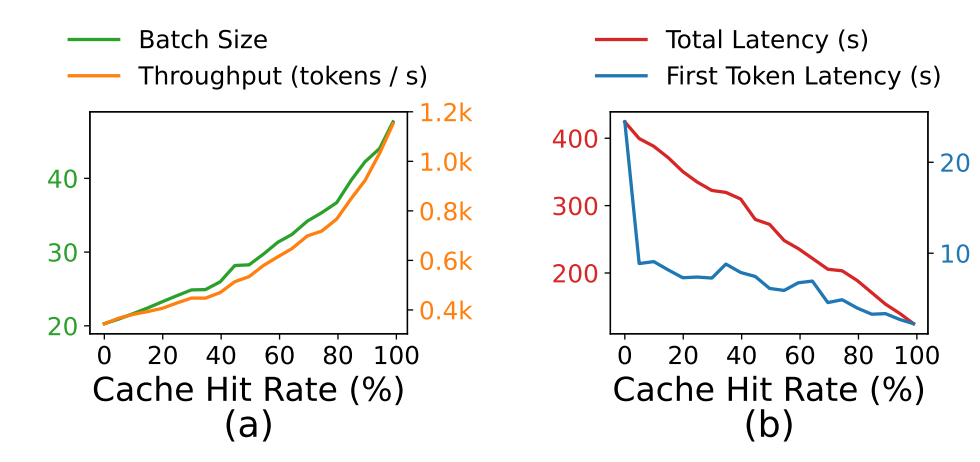

Cache hit rate ablation study, Source: Zheng, et. al., Figure 8a,b

The above is the ablation study from SGLang, a LLM inference library similar to vLLM. SGLang is the first paper to propose automatic prefix caching and rivals vLLM in performance.

In this chart, the cache hit rate is the percentage of prompt tokens that reuse pages from the KVCache through prefix caching. “It shows that a higher cache hit rate leads to a larger batch size, higher throughput, and lower latency.” We see that when the cache hit is 100% (i.e: all prompts are identical), enabling prefix caching increases throughput 3x from ~400 to ~1200 tokens/s.

However, the throughput speedup may be less pronounced if the workload is decode heavy as most of the time is spent in token generation, and prefix caching does not speedup token gen.

This optimizations is useful in many common scenarios:

• A LLM service that has a common system prompt.
• For advanced decoding algorithms like beam search.
• “Long document query, where the user repeatedly queries the same long document (e.g. software manual or annual report) with different queries” (Source: vLLM: "What is automatic prefix caching).
• Multi-round conversations: we do not have to re-encode the history of the conversation each time and can read it from cache.

Common gotchas

This caching approach differs from typical caches you may have seen:

Typical caches: K -> V

• Redis cache can map a document name to a single document file

PagedAttention KVCache: T_0, T_1, T_2, ..., T_n -> KV_0, KV_1, KV_2, ..., KV_n where KV_i = KvProjection(T_0, T_1, T_2, ..., T_i)

• PagedAttention KVCache maps each token in a sequence to its KV projection which is dependent on all preceding tokens.
• The KV projection may be represented as the index + offset into a page

This dependence of the KV projection on all proceeding tokens can be a bit confusing so here is an example. The earlier two sequences would have a different KV projection for the token “fries” even though it is the same token. This is because the tokens prior to “fries” differ.

• seq 1: “I like to eat cheese cake and … and fries”
• seq 2: “I like to eat cheese pizza and … french fries”

This diagram can be misleading as the pages containing the token “fries” appear to be the same. However, they cannot be de-duplicated into one page.

Page size granularity and copy-on-write optimization

Some of you may have noticed that the sequences presented earlier share a longer common prefix than just “I like to eat”. The entire common prefix is “I like to eat cheese cake and”.

The reason we truncated the common prefix when applying the prefix caching optimization is due to the page size granularity of the PageAttention KVCache. In this case page_size = 4 tokens, and the entire common prefix spans 4 tokens of the first block and 3 tokens of the second block.

• “I like to eat / cheese cake and {ice, french}”.

Because the prefix cache operates on whole pages, we align the matched tokens along page size boundaries.

This larger granularity is currently due to a limitation of MAX’s attention kernels. Our kernels assume that the page size is a multiple of the kernel tile size which is 128 tokens. For example, 128, 256, 384, 512, … are valid page sizes. There is work now towards supporting a wider range of page sizes (E2EOPT-28).

The reason we have a coarse granularity is for performance. The original vLLM paper found that a larger page size granularity of between 16 - 128 tokens is needed for good performance on their benchmarks.

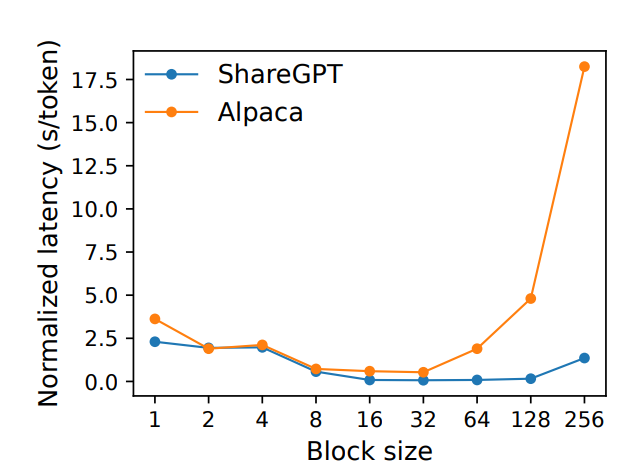

End-to-end latency with different block sizes. Source: Kwon, et. el., Figure 18b

However, SGLang claims that a page size/block_size = 1 token achieves the “same performance as the larger block sizes” with their custom TokenAttention kernel. This simplifies the programming for their prefix cache. We still need to look into confirming this.

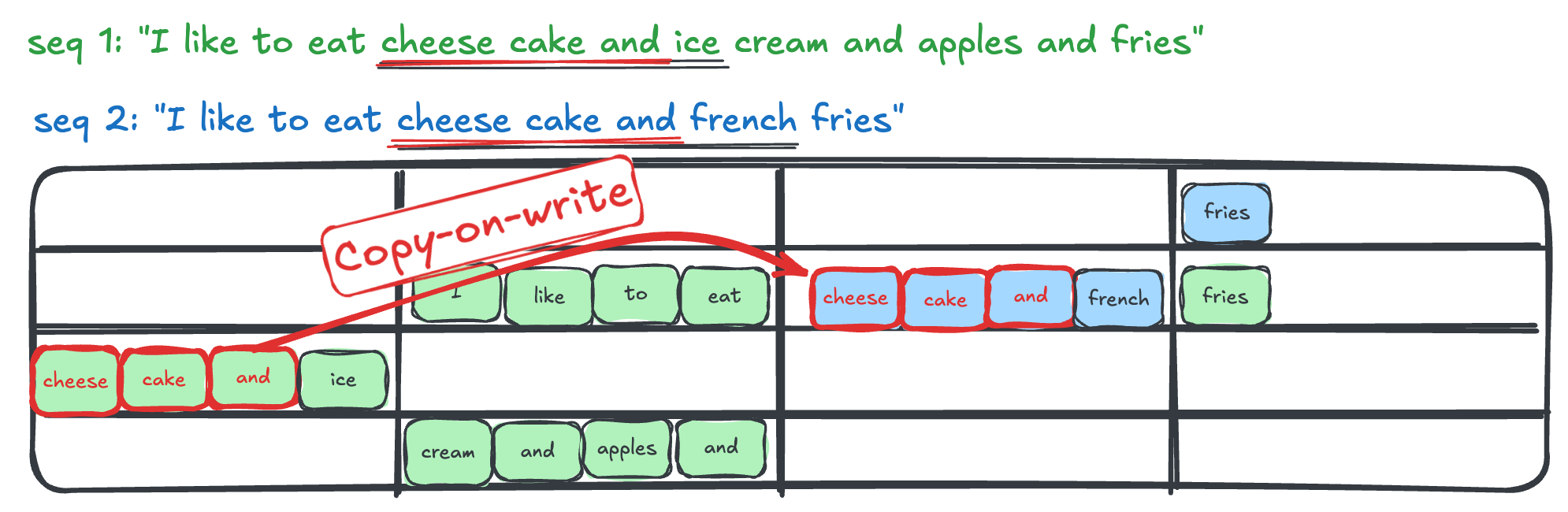

When sharing partial pages, we have to adopt a copy-on-write strategy. Here, the two sequences share the same KV projections for the tokens “cheese cake and”. However, the last projection in the second page differs. Now when seq 2 queries the prefix cache, it will need to allocate a fresh page and copy the first three KV projections into that page. After which it can write to the fourth and final entry of the new page without overwriting any KV projections in the original block.

In such a scenario where we perform COW, prefix caching does not reduce the overall number of blocks used among all sequences in the KV cache. However, this still yields a performance improvement since the attention kernel for the second sequence can read from the copied projections without recomputing them. The memory transfer issued to copy the KV projections into a new block can be comparatively cheaper than re-computation.

Implementing Prefix Caching

Prefix caching is implemented in both vLLM and SGLang using entirely different strategies. vLLM uses a hashing based implementation while SGLang uses a Trie based implementation.

SGLang utilizes a Radix Trie data structure:

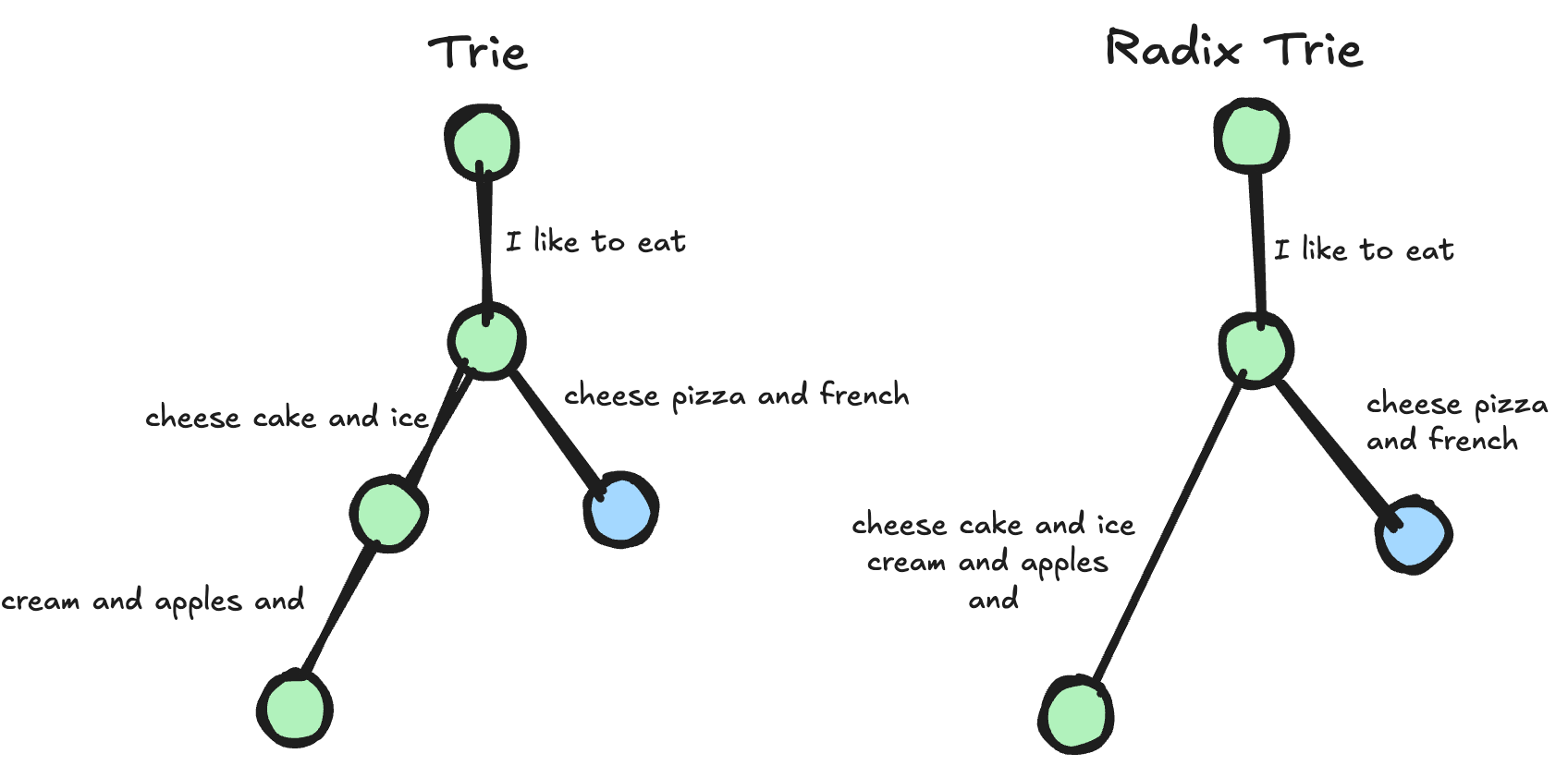

The two sequences can be represented as a prefix trie as seen on the left. Each edge of the tree contains the page_size tokens. Each node stores the page that has the KV projections for the tokens. Since the two sequences share the same first block, they have the same first node in the Trie. By crawling the tree from the root node, we can find out if a new sequence can reuse existing pages should it have a common prefix. This operation is very fast and runs in \(O(L)\).

Note that as an implementation detail, SGLang and us only include full blocks into the Trie. For example, the last partial blocks containing just the projections for the single token “fries” is not part of the Trie and not eligible for sharing.

As an additional optimization, SGLang uses a Radix Trie. The Radix Trie compresses non branching chains of nodes in the original Trie into a one node. This is more space efficient and can yield some performance improvements as we reduce the depth of the tree. This reduces the overall amount of pointer indirection needed when inserting / matching tokens which is especially pronounced for very long common sequences.

However, the radix trie implementation adds additional complexity for page size

1.

Prefix Caching Overhead

Both SGLang and vLLM (in their v1 alpha release), enabled prefix caching by default. Even when there is a cache hit rate of zero, the overhead of managing the prefix cache is tiny. In the original SGLang paper, they quote a slowdown caused by prefix cache management of 0.2 seconds over a benchmark that is 74s long (0.3% overhead). Initial timings on our implementation is also seeing a similarly tiny overhead. Though we may need to revisit this once we start supporting extremely large context lengths (e.g: 1 million tokens).

Prefix Cache Block Eviction

Unlike the basic PagedAttention algorithm which removes a request’s pages from the cache once it is terminated, with prefix caching they remain there to potentially be reused in future.

This means that over time the paged cache slowly fills up more and more. As such, the prefix cache need to evict blocks that are not in use by an active sequence. This block eviction occurs when we try to allocate a page but have no free pages left.

When evicting blocks we use a simple policy:

• Evict the LRU leaf blocks first

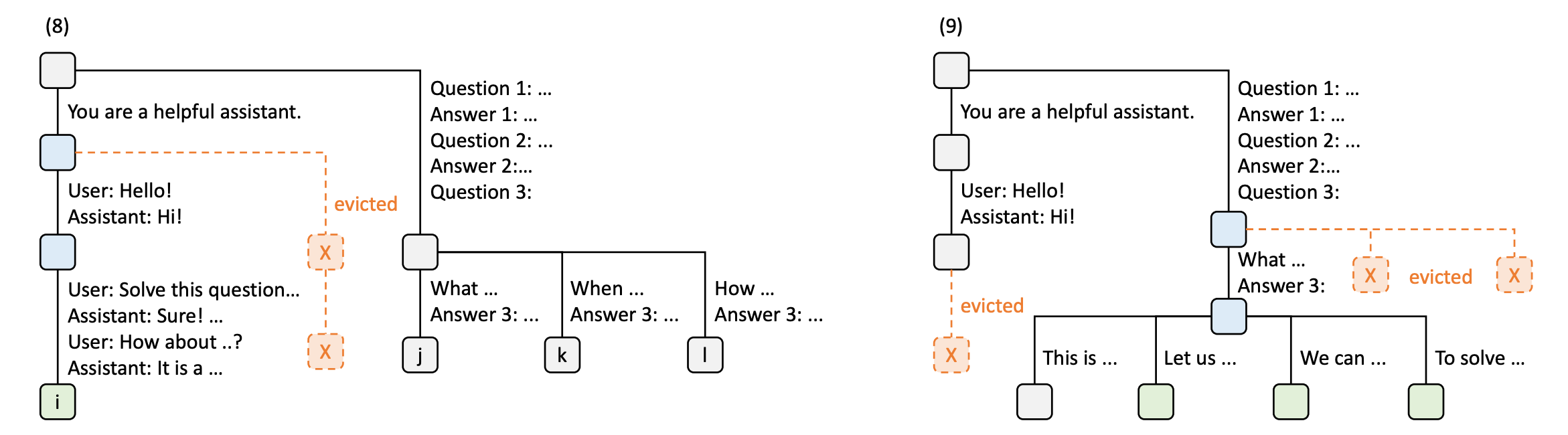

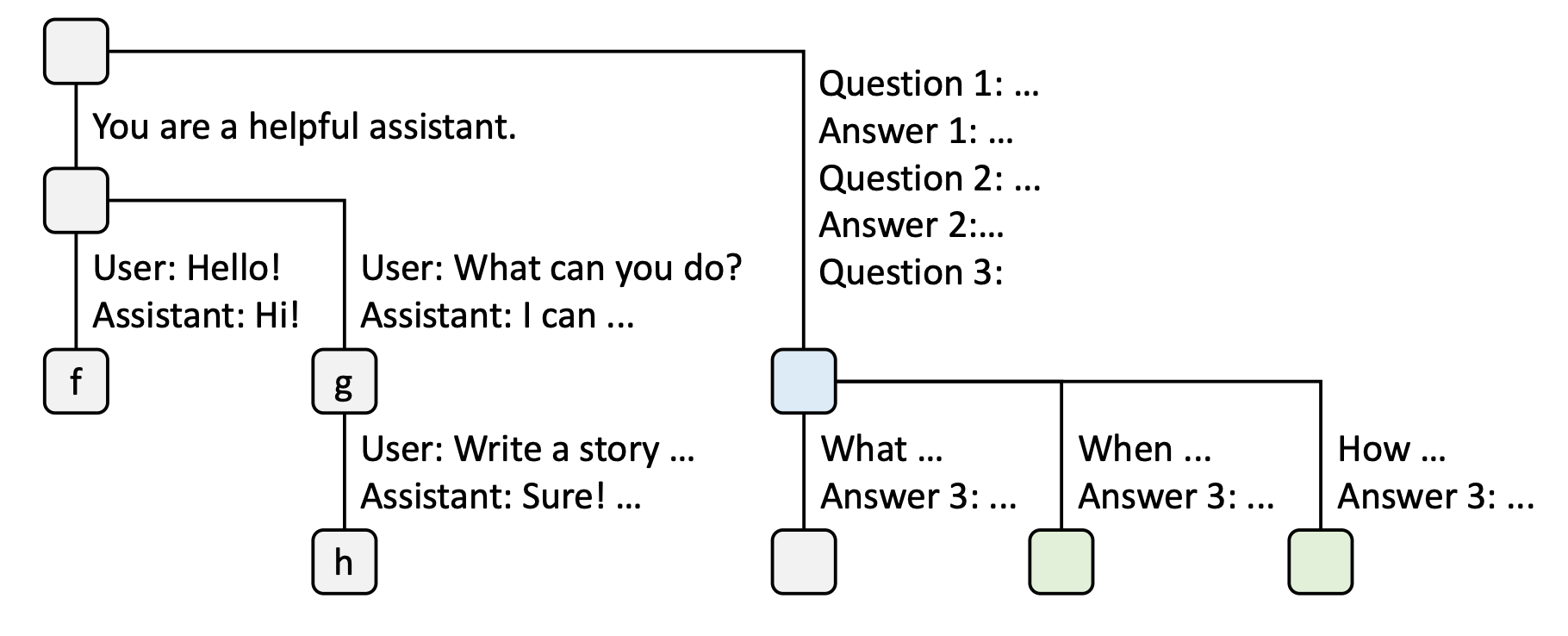

Examples of RadixAttention operations with an LRU eviction policy. Source: Zheng, et. al., Figure 3.

Oversubscribing the KVCache

Recall that one of the big benefits of PagedAttention is that it allows us to oversubscribe memory. Through memory oversubscription, we can issue larger batch sizes and achieve greater throughput. Recall the naive non-paged attention KVCache strategy from earlier. If we never schedule more than max_num_active_requests at once, a sequence will never be unable to have a block for its token.

With the Paged KVCache, we can scheduler even larger batches if each request uses fewer than max_seq_len tokens on average. As such, the Paged KVCache can oversubscribe the number of requests serviced by the KVCache.

However, the number of pages a request will ultimately use is not known by the scheduler a priori. As such, oversubscribing the KVCache could result in cases where there are no free pages to allocate EVEN AFTER EVICTING ALL BLOCKS NOT IN USE BY ACTIVE SEQUENCES. To handle such cases, we will need to evict sequences to make room for other sequences to continue execution. The evicted sequences can be rescheduled at a later time.

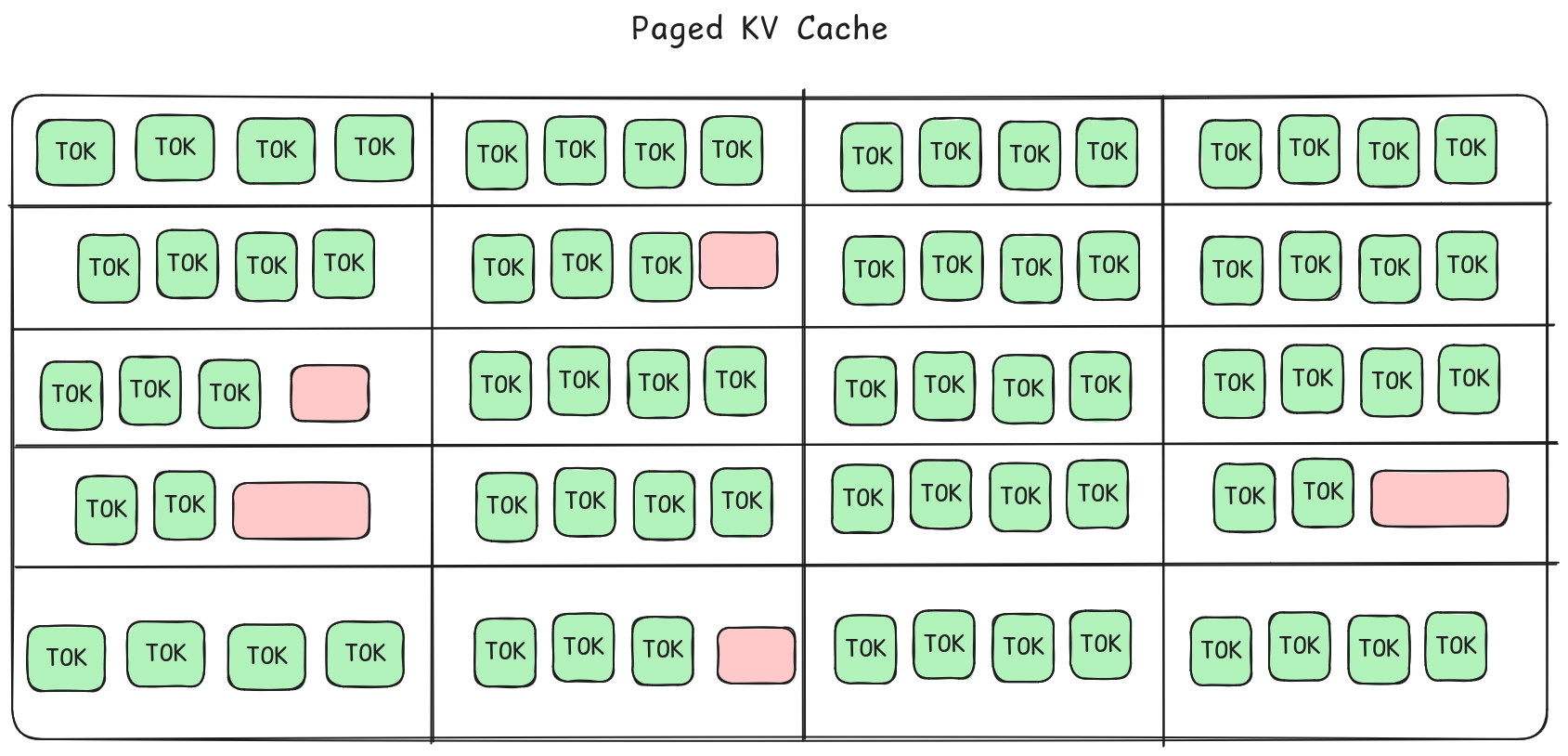

Uh oh, there are no free pages!

We have two options for evicting sequences:

• Swapping: The pages for the evicted sequences can be migrated to the more abundant CPU host memory. When the sequence is rescheduled, the swapped pages can be moved back into the GPU resident KVCache. This is reminiscent of how Operating Systems can evict CPU pages to Disk when a system is thrashing.
• Re-computation: The pages for the evicted sequence are deleted. The KV projections are recomputed when the sequence is rescheduled.
• Note that not all progress is lost! Lets say the original prompt was “I like to dance” and we ran 4 token generation steps to generate “and sing country songs”.
• We can compute the KV projections for all 8 tokens in one big CE step. This is much faster than running one CE step for just the 4 original tokens and then 4 iterative TG steps.
• This optimization is possible because we already know what the first 4 generated tokens are.

Prefix Caching is Functional

Nsys trace:

• Prefix caching improves CE performance when there is a cache hit

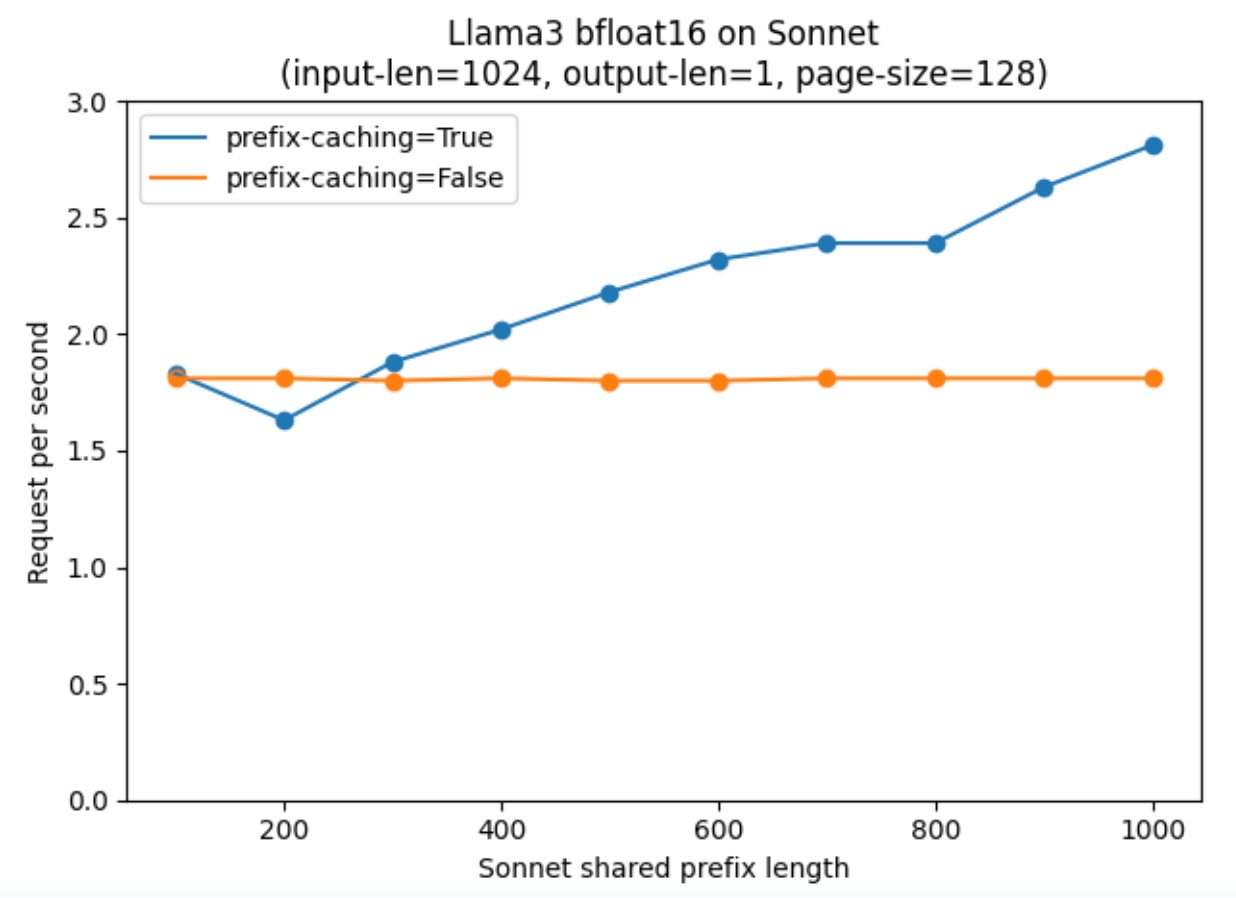

Scaling shared sonnet prefix length:

• Request per second scales linearly with shared prefix len as expected
• Over 50% higher CE throughput with larger shared prefix len

Future Work

Paths for future exploration.

vAttention

• Existing paged attention implementations pass a large buffer of memory for KVCache and a list of page offsets. A kernel needs to read the page offset and index into the large buffer.
• This indirection can have overhead. The vAttention authors claim that it can even be up to 24% slower!
• The authors use the lesser known CUDA driver virtual memory mapping APIs to map non-contiguous physical blocks of memory to a contiguous virtual pages.
• cuMemAddressReserve, cuMemCreate, cuMemMap, etc

source: Prabhu et. al. (vAttention)

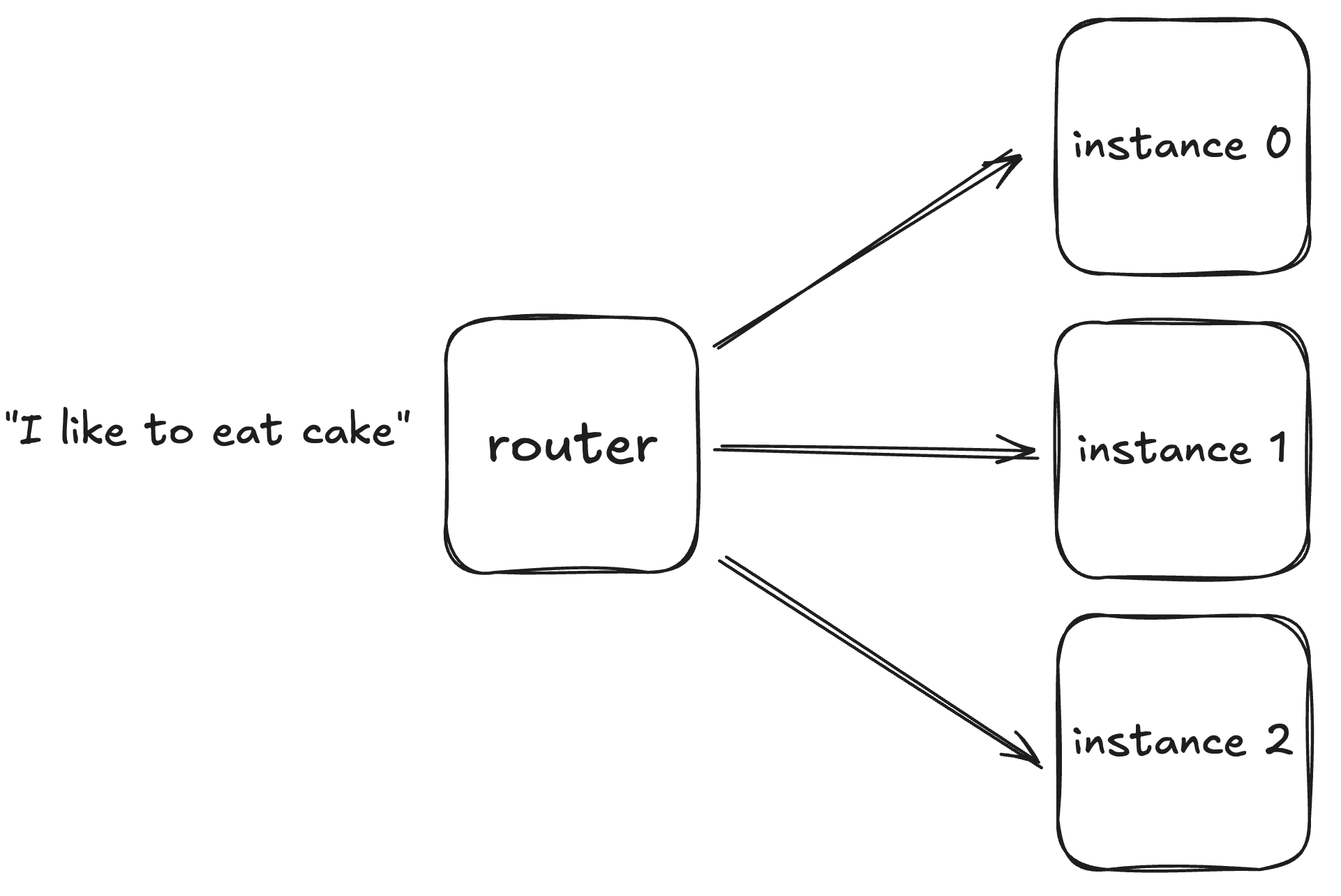

Prefix Affinity Routing

• Send requests with similar prefixes to similar hosts, sorta like sticky routing.

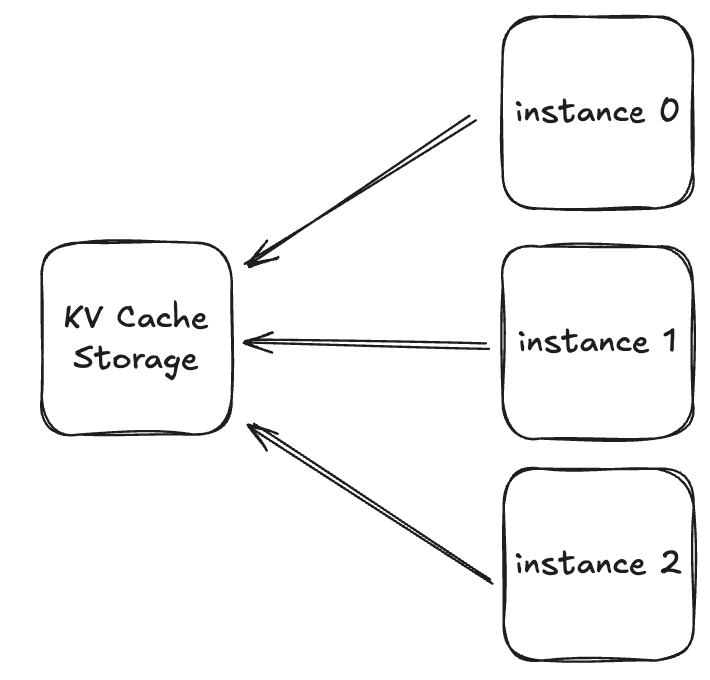

LMCache-like remote KVCache storage

• Many model instance shared the same remote KV Cache
