FB8 Support in Mojo

Author: Abdul Dakkak
Date: January 16, 2025

FP8 is an 8-bit floating point standard developed jointly by NVIDIA, ARM, and Intel to accelerate AI development by improving memory efficiency and reducing computational overhead. This document expands on what that means from both a product and a development perspective.

By better utilizing FP8 support on H100 and other accelerators, we can theoretically double the performance of model execution without massive impact on accuracy. By decreasing the resident weight size, we can enable fitting a 70B model on an 80GB GPU. This work will also sets the stage for W4A8 and W8A8 quantization schemes.

Introduction

FP8 uses half the bits compared to FP16 (half-precision floating point), leading to a significant reduction in memory requirements for storing model weights and activations. This is particularly crucial for large models and long sequence lengths, where memory constraints can be a major bottleneck. And, when used with the Transformer Engine and large matrix sizes, can achieve almost twice the throughput of FP16 on Hopper and Ada Lovelace GPUs. In terms of features, FP8 provides:

8-Bit Format: FP8 uses only 8 bits to represent floating-point numbers, which significantly reduces the memory footprint compared to traditional 16-bit or 32-bit formats.
Higher Dynamic Range: Compared to INT8, FP8 offers a higher dynamic range, making it more suitable for quantizing large language models (LLMs) and other neural network models that require more precision.
Standardization Effort: The format is part of a standardization effort to create a common interchange format for AI, facilitating better interoperability between different hardware and software platforms.

Formats

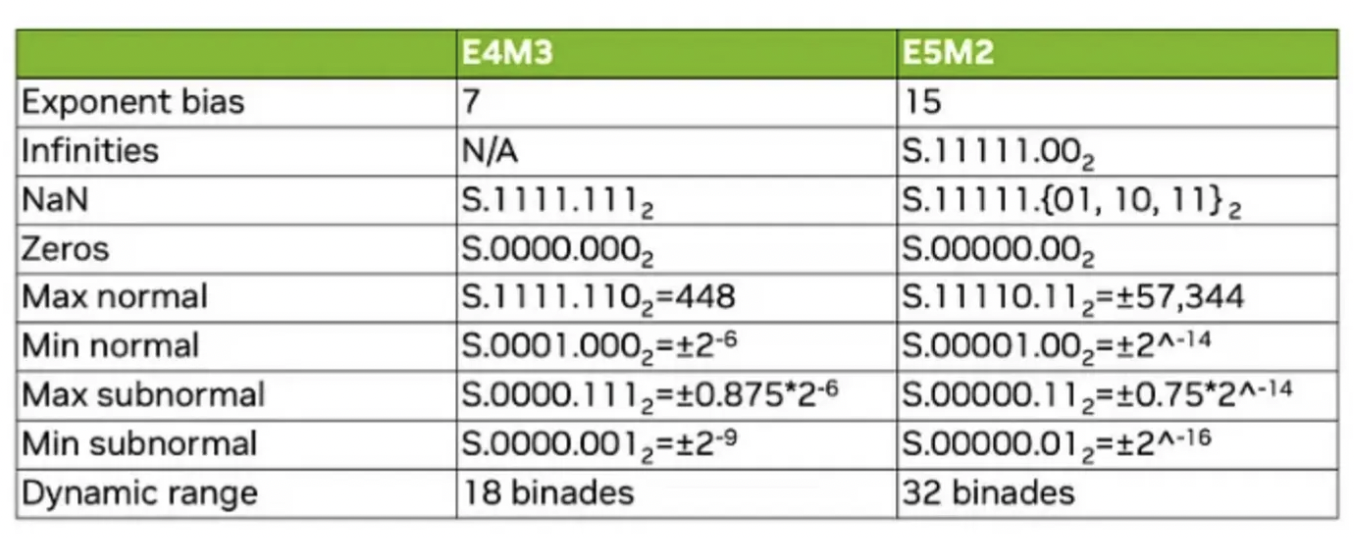

The designated use of FP8 encodings within the context of deep learning and neural networks is as follows: E4M3 is specifically intended for weight and activation tensors, while E5M2 is designated for gradient tensors. This distinction arises from the inherent characteristics of each tensor type and the specific computational demands they place on the system.

Weight and activation tensors typically require a balance between numerical range and precision. E4M3, with its 4 exponent bits and 3 mantissa bits, provides this balance, allowing for a reasonable range of values while maintaining sufficient precision for accurate computations during forward and backward propagation.

On the other hand, gradient tensors often exhibit a wider dynamic range due to the accumulation of small values during backpropagation. E5M2, with its 5 exponent bits and 2 mantissa bits, prioritizes representing a larger range of values, even if it means sacrificing some precision. This is often acceptable for gradients, as their primary role is to indicate the direction of change, rather than the exact magnitude.

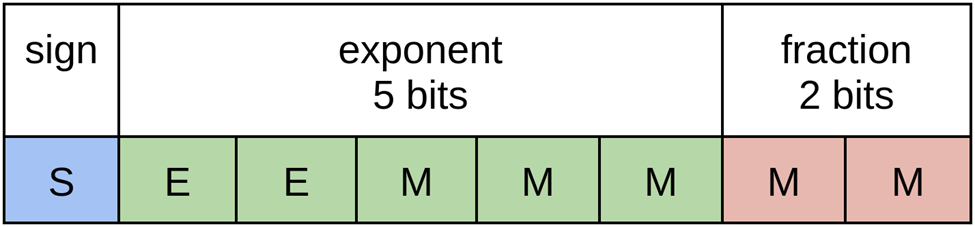

F8E5M2

F8E5M2 is a specific 8-bit floating-point format designed for situations where memory and computational efficiency are crucial, often seen in AI and machine learning applications on resource-constrained devices.

Here's a breakdown of what it represents:

F8: Denotes an 8-bit floating-point format.
E5: 5 bits are allocated to the exponent, impacting the range of numbers that can be represented.
M2: 2 bits are assigned to the mantissa, influencing the precision or level of detail in the numbers.
Sign: The remaining bit is dedicated to the sign (positive or negative).

In essence, F8E5M2 prioritizes a wider range of representable numbers (due to the 5 exponent bits) over higher precision (only 2 mantissa bits). This trade-off makes it suitable for applications where capturing a broader range of values is more important than extreme accuracy.

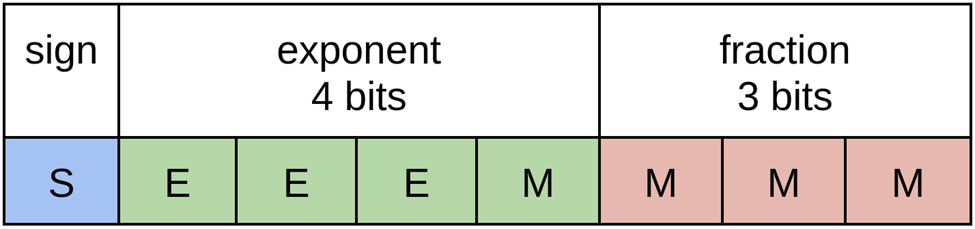

F8E4M3

"F8E4M3 format" is a specific way to store numbers using 8 bits, making it compact for memory and faster to process. The "F8" indicates it's an 8-bit floating-point format, similar to the FP8 you asked about earlier. The "E4M3" part specifies how those 8 bits are divided: 4 bits for the exponent (the "E" part) and 3 bits for the mantissa (the "M" part), with the remaining bit for the sign.

This particular format strikes a balance between representing a decent range of numbers (due to the 4 exponent bits) and maintaining some level of precision (with the 3 mantissa bits). It's often used in situations where memory and computational efficiency are crucial, like machine learning applications on devices with limited resources.

Plumbing

We have experience plumbing a new DType across our stack (we’ve done it for FP16 and BF16). This is mostly mechanical and straight forward. Note that while we are at it we are going to add support for all of Float8E5M2, Float8E4M3, and Float8E3M4 but we won’t support Float8E3M4 since that’s not supported by NVIDIA hardware.

We started this process by adding support for both Float8E5M2 and Float8E4M3 to enable us to plumb this functionality into Mojo kernels.

Mojo

The Mojo stack requires one to implement the following specification:
