Elementwise Operations on GPUs

  • Author: Chad Jarvis
  • Date: August 12, 2024

Element-wise operations apply a function to each element of a tensor with no dependence between elements. The simplest element-wise operations is memcpy (or perhaps memset).

In terms of the BLAS routines the Level 1 vector-vector methods, such as dot product, are element-wise operations. However, the Level 2 operations, such as gemv, and the Level 3 operations such as gemm, are not elementw-wise operations.

Because there is no data re-usage, element-wise operations are often memory bandwidth bound. However, some cases could be compute bound. For example generating the Mandelbrot set can be implemented as an element-wise operation.

Peak global memory bandwidth

Since most operations are memory bandwidth bound it’s useful to know what the peak global memory bandwidth is. This can be computed using the following formulas:

1
GB/s = bus-width (in bytes) * (transfers per cycle) * memory clock (GHz)

or

1
GB/s = bus-width (in bytes) * Gbps

where

1
Gbps = (transfers per cycle) * Ghz

The following table gives the number of transfers per cycle that are available to different memory types:

Memory Type How many times data can be sent per clock cycle
GDDR6X 16
GDDR6/GDDR5x 8
SDR (or other single data rate memory types) 1
Everything else including DDR, DDR2, DDR3, DDR4, HBM, HBM2, HBM3, etc 2

For typical accelerators, we have this table of bandwidths:

GB/s bus-width bits memory clock GHz transfers/cycle Gbps memory type
A100 80 GB 1935 5120 1.512 2 3.024 HBM2E
A100 40 GB 1555 5120 1.215 2 2.43 HBM2
A10 600 384 1.5625 8 12.5 GDDR6
L4 300 192 1.5625 8 12.5 GDDR6

With cache sizes of:

L2 cache L1 cache SMs
A100 40 MiB 21168 KiB = 192 KiB * 108 108
A10 6 MiB 10240 KiB = 128 KiB * 80 80
L4 48 MiB 7168 KiB = 128 KiB * 56 56

Some important observations from these tables

  • The L4 has the lowest bandwidth (5x lower than the A100 40 GB and 2x slower than the A10) but the largest L2 cache.
  • The A10 L2 cache is 6.6 - 8 times smaller than the A100 and L4 L2 cache.
  • The A100 uses HBM2 but the A10 and L4 use GDDR6.

Element-wise performance

Note that in all benchmarks I changed

1
2
var N = product(dims, rank)
var num_bytes = N * sizeof[[type]()

to

1
var num_bytes = 2 * N * sizeof[[type]()

Because both reads and writes are done so the total bytes is twice.

Peak memory bandwidth benchmarks

The following charts show the peak memory bandwidth of different accelerators based on internal benchmarking.

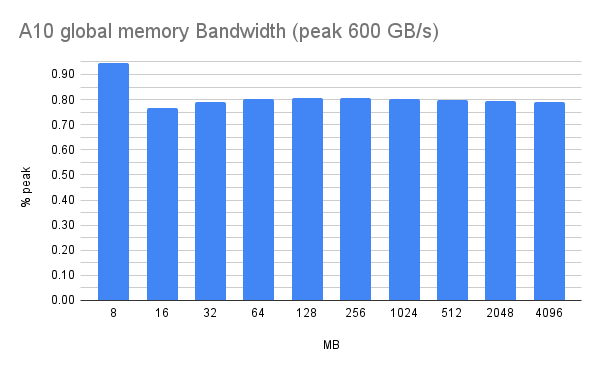

A10 global memory Bandwidth (peak 600 GB_s)(1).png

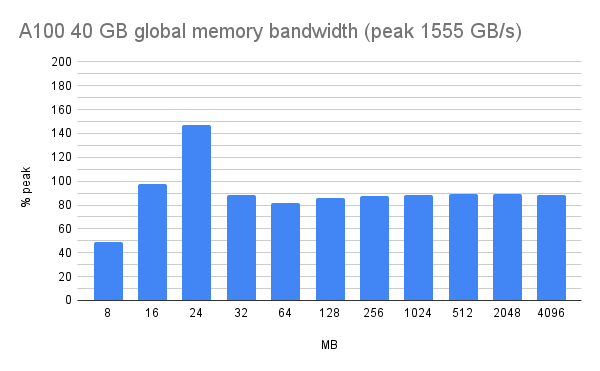

A100 40 GB global memory bandwidth (peak 1555 GB_s)(4).png

Observations:

  • With the L4 we get more than peak bandwidth for 32 MiB and smaller. The L2 cache size is 48 MiB so it seems that bandwidth could be the L2 bandwidth.
  • The A10 has has only a 6 MiB L2 cache and the smallest size measured is 8 MiB. But with 8 MiB the bandwidth is clearly higher than larger sizes.
  • With the A100 we don’t see the effect of the L2 cache for some reason accept at 24 MiB.

The A100 uses HBM2 and the A10 and L4 use GDDR6. This could explain some of the the differences in the bandwidth measurements. Could also be a difference between Ampere sm_80 and Ada Lovelace sm_89.

Benchmarking of baby-replit kernels

Analysis of baby-replit CE and TG kernels shows:

baby-replit-CE-kernels baby-replit-TG-kernels
DimList (1, 1024, 3072) (1, 8, 3, 1025, 128)
elements 3145728 3148800
bytes float32 24 MiB 24 .02 MiB
bytes bfloat16 12 MiB 12.01 MiB

This means that the baby-replit shapes fit in the A100 L2 cache (40 MiB) and the L4 L2 cache (48MiB) but not the A10 L2 cache (6MiB) i.e. the A10 benchmark should be mostly memory bandwidth bound but the A100 and L4 could depend on the L2 bandwidth or maybe L1 bandwidth.

I improved the add_const function for bfloat16 to use the bfloat16 fma function instead of upcasting to float32 and then downcasting back to bfloat16. I also optimized the log function to use the log2 instruction for float32. All the following results have these optimizations.

Since baby-replit-CE-kernels and baby-replit-TG-kernels have almost the same number of elements to keep it simpler I only looked at baby-replit-CE-kernel.

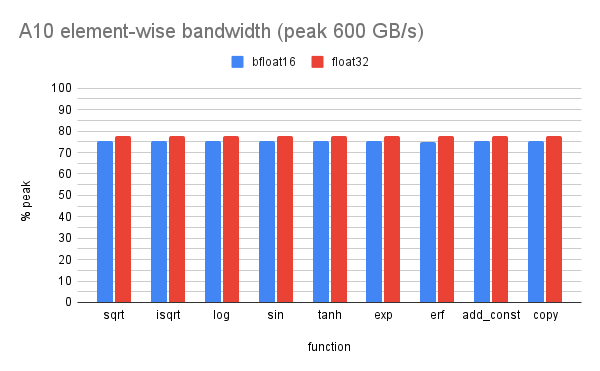

A10 element-wise bandwidth (peak 600 GB_s).png

Every measurement appears to be global memory bandwidth bound. The L2 cache size is only 6 MiB and the bytes transferred is at least 12 MiB (bfloat16). The bandwidth is only about 75% of peak. Perhaps it’s possible this could be a bit better. This plot makes sense!

L4 element-wise bandwidth (peak 300 GB_s)(1).png

Every measurement is more than peak likely due to the sizes easily fitting in the 48 MiB L2 cache. The erf is clearly not optimized and is more compute than bandwidth bound. Also, bfloat16 is clearly slower than float32 in general. This plot makes sense if we assume it’s measuring the L2 bandwidth and not global memory bandwidth.


Notice that float32 is roughly twice as fast as bfloat16. The erf function also a bit slower. The sizes all fit in the 40 MiB L2 cache. So why is performance only more than peak at 24 MiB and why is bfloat16 so much slower than float32? This plot makes no sense.

If I double the number of elements from 1024x3072 to 2048*3072 I get this plot

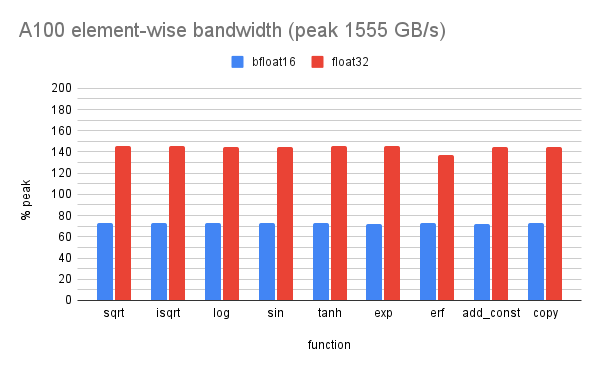

A100 element-wise bandwidth (peak 1555 GB_s)(5).png

Now the roles between float32 and bfloat16 have flipped (except for erf) Why is this?

With 1024x3072 the bytes transferred with float32 is 24 MiB but only 12 MiB with bfloat16 . But with 2048x3072 with float32 is 48 MiB and bfloat16 is 24 MiB. Why does this matter?

The L2 cache is 40 MiB so the measurement appears to still be dominated by the L2 cache. However, the L1 cache is 192 KiB per SM and there are 108 SMs so 20.736 MiB total. In the first case, 10243072, the bfloat16 measurement fits in the L1 cache but the float32 measurement does not. In the second case 20483072 neither fit in the L1 cache.

So the L1 cache seems to explain the difference between float32 and bloat16. But it’s still not clear why the performance is not faster in L2 like we see with the L4 GPU. So the A100 plots still don’t make sense!

Benchmark conclusions

It’s hard to know what matters in the models from these benchmarks due to the measurement being biased by the cache. The only measurement not strongly biased by the cache is the A10 measurement.

  • Struggled to understand the measurements. Cache issues between the three different hardware types made it complicated. It took some time to understand this.
  • fgOn the A100, which is what we first benchmarked, we thought bfloat16 was much slower due to bad code. But now it looks like this is just a cache issue.
  • Without cache-busting it’s hard to know what is important to optimize.

Cache busting memcpy experiment on the L4

Created a GPU memcpy function in Mojo

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
fn copy[simd_size: Int, align: Int](
    a_ptr: UnsafePointer[Scalar[dtype]],
    b_ptr: UnsafePointer[Scalar[dtype]],
    n: Int,
    offset: Int,
):
    var idx = ThreadIdx.x() + BlockDim.x() * BlockIdx.x()
    var a = Buffer[dtype](a_ptr + offset, n)
    var b = Buffer[dtype](b_ptr + offset, n)
    for i in range(idx, n//simd_size, BlockDim.x()*GridDim.x()):
        b.store[alignment=align](
            i*simd_size,
            a.load[width=simd_size, alignment=align](i*simd_size),
        )

Call the function like this

1
2
3
4
5
6
7
8
fn run_func(ctx: DeviceContext, iteration: Int) raises:
    var offset = (iteration*n2)%n
    #var offset = 0
    ctx.enqueue_function(
        func, a_d, b_d, n2, offset,
        grid_dim=((n2//simd_size + BLOCK_SIZE -1) // BLOCK_SIZE),
        block_dim=(BLOCK_SIZE),
    )

where n is is 800_000_000 and n is 4_000_000 i.e. n is a 2 GiB in and out buffer and n2 is 16 MiB memcpy (read and write).

Time it like this

1
2
3
4
5
6
7
8
alias repeats = 10
for i in range(repeats):
    var t0 = -1.0 * now()
    run_func(ctx, i)
    ctx.synchronize()
    t0 += now()
    t0 /= 1_000_000_000
    print(2E-9*sizeof[dtype]()*n2/t0, "GB/s")

Results with offset = 0

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
399.48566220990477 GB/s
1469.2378328741963 GB/s
1551.8913676042678 GB/s
1541.4258188824663 GB/s
1551.8913676042678 GB/s
1603.9296275875897 GB/s
1576.3546798029558 GB/s
1564.7156618258275 GB/s
1588.7989672806714 GB/s
1580.9495578281706 GB/s

In this case each iteration runs over the same 16 MiB.

Results with offset = (iteration*n2)%n

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
400.84176771219558 GB/s
363.50418029807344 GB/s
274.52965349210297 GB/s
243.41449685462828 GB/s
233.01027429678226 GB/s
233.53743532107748 GB/s
227.72072899098367 GB/s
239.1933205265243 GB/s
232.63760150632848 GB/s
238.55139664388003 GB/s

The element-wise algorithm

See _elementwise_impl_gpu, based on "OneFlow’s Optimization of CUDA Elementwise Template Library".

Primarily three optimizations

We have simple examples of these methods for memcpy in memcpy.mojo:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
fn copy_naive(
    a_ptr: UnsafePointer[Scalar[dtype]],
    b_ptr: UnsafePointer[Scalar[dtype]],
    n: Int,
):
    var i = ThreadIdx.x() + BlockDim.x() * BlockIdx.x()
    var a = Buffer[dtype](a_ptr, n)
    var b = Buffer[dtype](b_ptr, n)
    if i < n:
        b[i] = a[i]

Grid stride loops:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
#https://developer.nvidia.com/blog/cuda-pro-tip-write-flexible-kernels-grid-stride-loops/
fn copy_grid_stride_loops(
    a_ptr: UnsafePointer[Scalar[dtype]],
    b_ptr: UnsafePointer[Scalar[dtype]],
    n: Int,
):
    var idx = ThreadIdx.x() + BlockDim.x() * BlockIdx.x()
    var a = Buffer[dtype](a_ptr, n)
    var b = Buffer[dtype](b_ptr, n)
    for i in range(idx, n, BlockDim.x()*GridDim.x()):
        b[i] = a[i]

Vectorized loads and stores:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
#https://developer.nvidia.com/blog/cuda-pro-tip-increase-performance-with-vectorized-memory-access/
fn copy_vector[simd_size: Int, align: Int](
    a_ptr: UnsafePointer[Scalar[dtype]],
    b_ptr: UnsafePointer[Scalar[dtype]],
    n: Int,
):
    var idx = ThreadIdx.x() + BlockDim.x() * BlockIdx.x()
    var a = Buffer[dtype](a_ptr, n)
    var b = Buffer[dtype](b_ptr, n)
    for i in range(idx, n//simd_size, BlockDim.x()*GridDim.x()):
          b.store[alignment=align](
            i*simd_size,
            a.load[width=simd_size, alignment=align](i*simd_size),
        )

Grid and Block dims

Case 1:

1
2
block_dim = 256
grid_dim1 = ((n//simd_size + block_dim - 1) // block_dim)

Case 2:

1
2
3
4
 block_dim = 256
 threads_per_sm = 1536 (A10 and L4), 2048 (A100)
 num_waves = 32
 grid_dim2 = sm_count * threads_per_sm // block_size * num_waves

The element-wise Mojo method does:

1
min(grid_dim1, grid_dim2)

Note that grid_dim2 it depends only on the hardware and not on the number of elements.

grid_dim2 sm_count threads_per_sm/block_dim waves
A100 27648 108 8 32
A10 15360 80 6 32
L4 10752 56 6 32

For a number of elements large than the break point the grid_size will be grid_size2.

1
2
break_point = simd_size*(block_dim*grid_dim3 - block_dim -1)
grid_size1_break_point = 4*(256*grid_dim3 - 255)
grid_size1 break point grid_size1 MiB float32
A100 28_310_532 216
A10 15_727_620 120
L4 11_009_028 84
grid_size1 num_elements
baby-replit-CE-kernels 3072 3_145_728
baby-replit-TG-kernels 3075 3_148_800

From this we can infer that with baby-replit the A100, A10, and L4 all use grid_size1.

From bench_elementwise_aligned.mojo

gs1 = grid_dim1, gs2 = grid_dim2

A10 element-wise bandwidth (peak 600 GB_s)(2).png

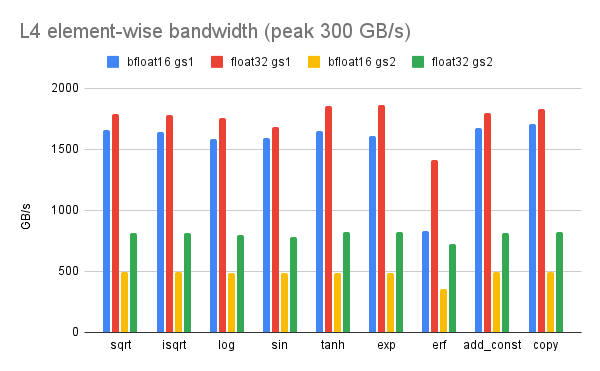

L4 element-wise bandwidth (peak 300 GB_s)(3).png

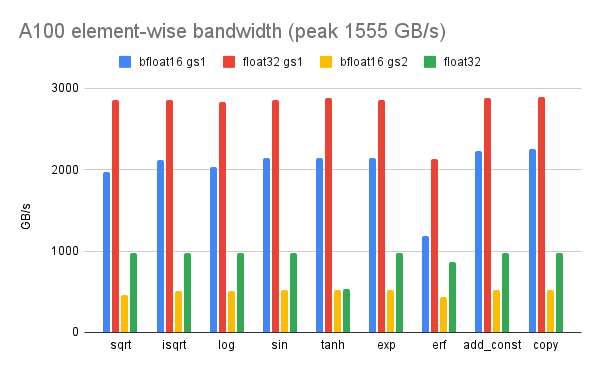

A100 element-wise bandwidth (peak 1555 GB_s)(6).png

From bench_elementwise_memcopy.mojo

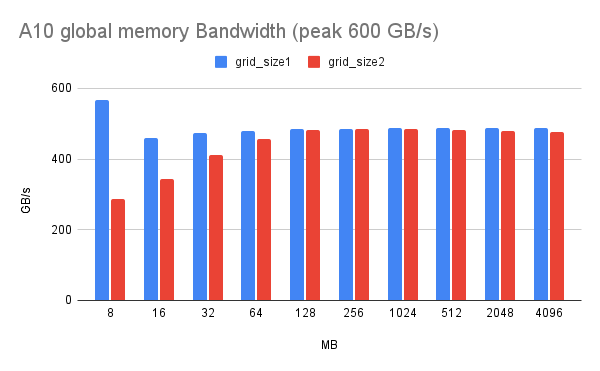

A10 global memory Bandwidth (peak 600 GB_s)(2).png

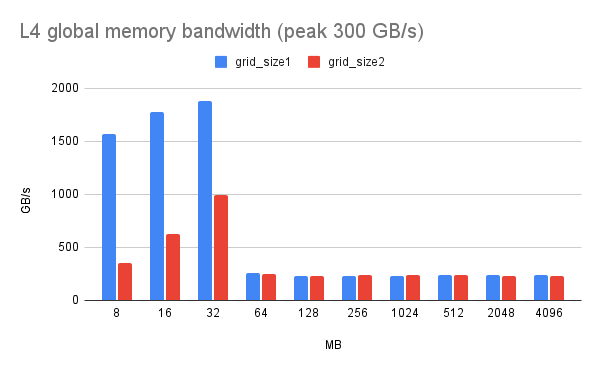

L4 global memory bandwidth (peak 300 GB_s)(2).png

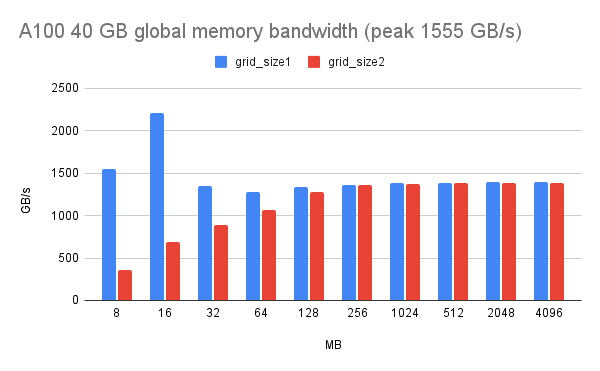

A100 40 GB global memory bandwidth (peak 1555 GB_s)(5).png

  • There does not seem to be a single case where grid_size2 has an advantage.
  • For very large sizes it appears to mostly reach parity with grid_size1 but at even larger sizes seems to be inferior. I first noticed this with my CUDA memcopy code for large sizes.

Based on this we should only use grid_size1 for elementwise in Mojo.

Vectorization

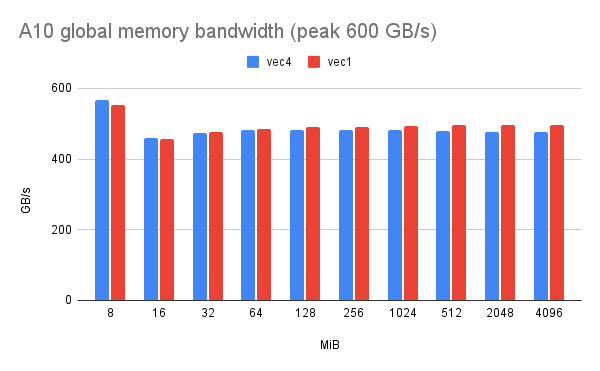

A10 global memory bandwidth (peak 600 GB_s).png

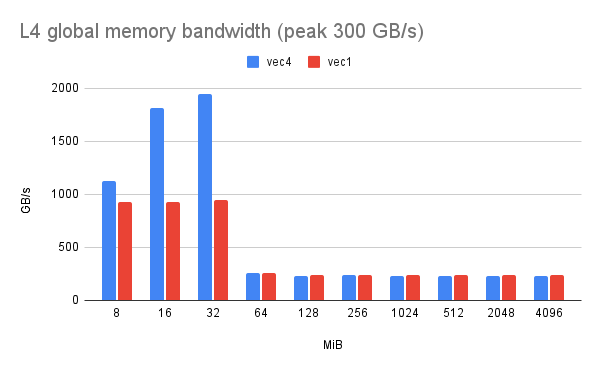

L4 global memory bandwidth (peak 300 GB_s) .png

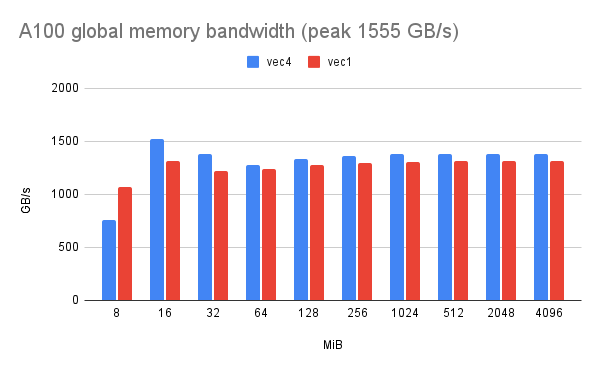

A100 global memory bandwidth (peak 1555 GB_s).png

  • In the global memory region vec4 only seems to help on the A100.
  • Vec4 seems to help in L2.

It’s difficult to conclude what vectorization to use with element-wise to benchmarking without cache-busting. It looks like on the A100 we want vec4 in general. But on the A10 and L4 it may be worse for IO from global memory.

With bfloat16 there are vec2 arithmetic instructions. But not many with these GPUs (fma and maybe log2). Not until Hopper (sm_90). It’s not clear this matters though in the global memory region.

memcpy in depth

Hardware details

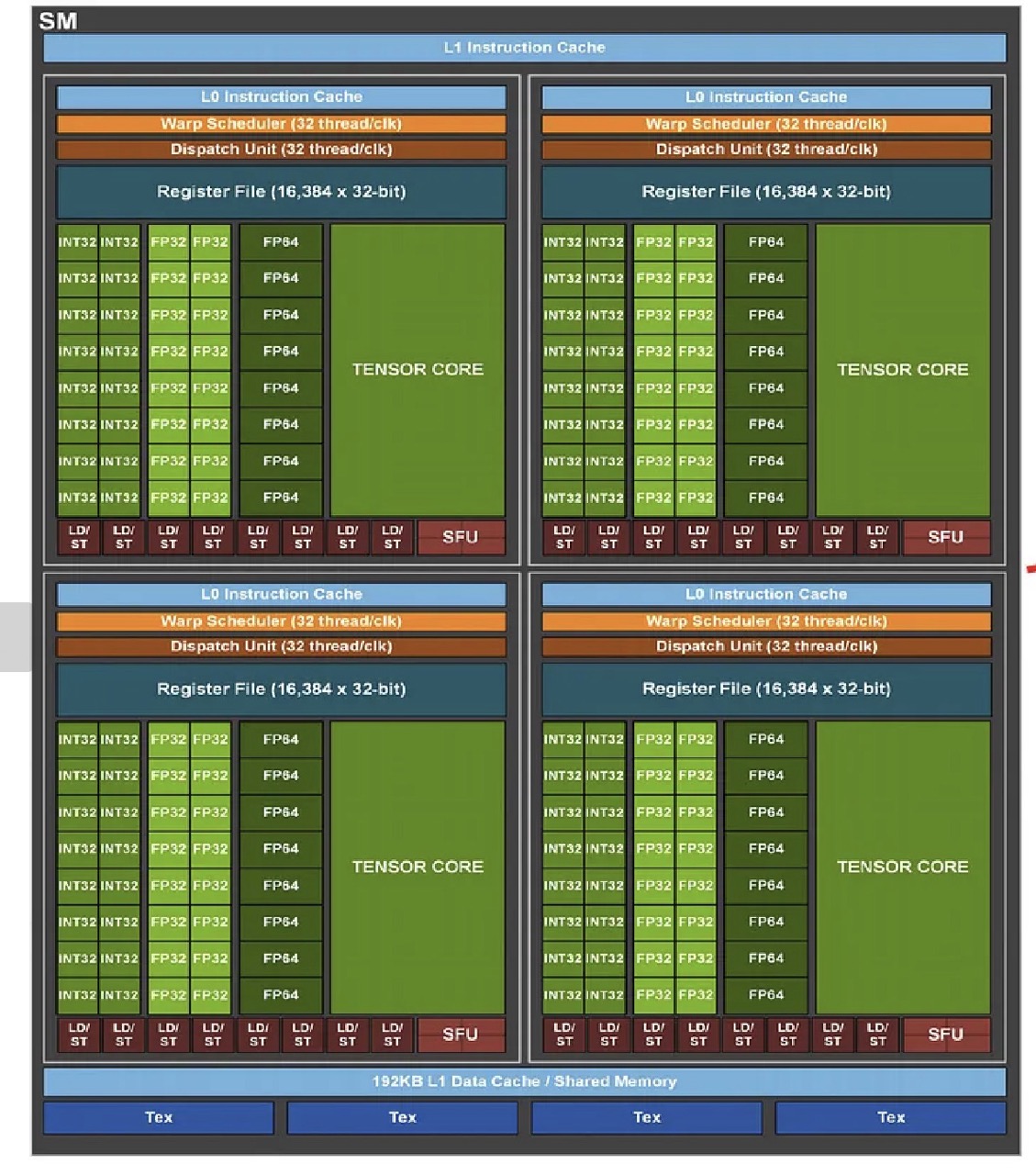

Ampere sm_80 SM (A100)


Ada Lovelace sm_89 SM (L4 and RTX 4060 laptop)


SMs LD/ST per SM Boost clock Max bytes per cycle GB/s per SM Peak global memory GB /s
A100 40 GB 108 32 1410 MHz 138234 = 432108 180.5 1555
A10 80 32 1695 MHz 10240 = 43280 216.96 600
L4 56 16 2040 MHz 3584 = 41656 130.56 300

GB/s second assumes load/stores every clock cycle from L1. But in practice a memcpy function will require several instructions per iteration.

Bandwidth 1 SM

vec1 vec2 vec4 vec4/peak per SM
A100 14.9 GB/s 26.3 GB/s 51.5 GB/s 28% = 51.5/180.5
A10 22.0 GB/s 41.9 GB/s 73.7 GB/s 33% = 73.7/216.96
L4 22.8 GB/s 43.5 GB/s 78.2 GB/s 60% = 78.2/130.56

The L4 (Ada Lovelace sm_89) SM has half the number of load store units of the A100 and A10 SM. But this is not reflected in the performance for a single SM.

Memcpy on the server CPUs also requires many cores (like SMs) and vectorizaztion.

More details on this Stack Overflow thread, "memory bandwidth for many channels x86 systems"

Instructions per iteration

SASS of memcpy from CUDA C++ code using 32-bit iterators

1
2
3
4
__global__ void device_copy_scalar_kernel(int *d_in, int *d_out, unsigned n) {
  unsigned idx = blockIdx.x * blockDim.x + threadIdx.x;
  for (unsigned i = idx; i < n; i += blockDim.x * gridDim.x) d_out[i] = d_in[i];
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
/*0070*/
HFMA2.MMA R5, -RZ, RZ, 0, 2.3841e-07    // R5 = 4 ?
IMAD.WIDE R2, R0, R5, c[0x0][0x160]     // R2 = R0*R5 + c[0x0][0x160] = 4*i + d_in
LDG.E R3, [R2.64]                       // R3 = d_in[i]
IMAD.WIDE R4, R0, R5, c[0x0][0x168]     // R4 = R0*R5 + c[0x0][0x168] = 4*i + d_out
MOV R7, c[0x0][0x0]                     // R7 = gridDim.x
IMAD R0, R7, c[0x0][0xc], R0            // R0 += c[0x0][0x0]*c[0x0][0xc] // i += gridDim.x*threadIdx.x
ISETP.GE.AND P0, PT, R0, c[0x0][0x170], PT // P0 = R0 >= n
STG.E [R4.64], R3                       // d_out[i] = R3
@!P0 BRA 0x70                           // goto 0x70 if P0

Each iterations reads 4 bytes and stores 4 bytes

Vec4

1
2
3
4
5
6
__global__ void device_copy_vector4_kernel(int *d_in, int *d_out, unsigned n) {
  unsigned idx = blockIdx.x * blockDim.x + threadIdx.x;
  for (unsigned i = idx; i < n / 4; i += blockDim.x * gridDim.x) {
    reinterpret_cast<int4 *>(d_out)[i] = reinterpret_cast<int4 *>(d_in)[i];
  }
}

Here is the SASS

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
/*0070*/
HFMA2.MMA R3, -RZ, RZ, 0, 9.5367e-07    // R3 = 16 ?
IMAD.WIDE R4, R0, R3, c[0x0][0x160]
LDG.E.128 R4, [R4.64]                   // 128-bit load
IMAD.WIDE R2, R0, R3, c[0x0][0x168]
MOV R9, c[0x0][0x0]
IMAD R0, R9, c[0x0][0xc], R0
ISETP.GE.AND P0, PT, R0, 0xd693a40
STG.E.128 [R2.64], R4                   // 128-bit load
@!P0 BRA 0x70

Each iteration reads 16 bytes and stores 16 bytes.

Notice that the only difference between the two loops is Vec4 uses 128 bit loads and the factor is 16 instead of 4. Both loops take 9 instructions. The vec4 is effectively amortizing the cost of the pointer arithmetic by four.

bytes/iteration
vec1 8
vec2 16
vec4 32

With 64-bit iterators the code is a bit longer

1
2
3
4
__global__ void device_copy_scalar_kernel(int *d_in, int *d_out, size_t n) {
  size_t idx = blockIdx.x * blockDim.x + threadIdx.x;
  for (size_t i = idx; i < n; i += blockDim.x * gridDim.x) d_out[i] = d_in[i];
}

The only difference from the 32-bit iterator version is the use of size_t. Here is the SASS

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
IMAD.SHL.U32 R4, R0.reuse, 0x4, RZ                              //
SHF.L.U64.HI R5, R0, 0x2, R7
IADD3 R2, P0, R4, c[0x0][0x160]                                 // R2 = in ptr low
IADD3.X R3, R5, c[0x0][0x164], RZ, P0, !PT                      // R3 = in ptr high
LDG.E R3, [R2.64]                                               // load from R2, R3
IADD3 R4, P0, R4, c[0x0][0x168], RZ                             // R4 = out ptr low
IMAD R9, R6, c[0x0][0xc], RZ                                    // R9 = R6*c[0x0][0xc] + 0
IADD3.X R5, R5, c[0x0][0x16c], RZ, P0, !PT                      // R5 = out ptr high
IADD3 R0, P0, R9, R0, RZ                                        // R0 += 1
IMAD.X R7, RZ, RZ, R7, P0                                       // R7 += carry
ISETP.GE.U32.AND P0, PT, R0, c[0x0][0x170], PT                  // P0 = i_low < n_low
ISETP.GE.U32.AND.EX P0, PT, R7, c[0x0][0x174], PT, P0           // P0 &= i_high < n_high
STG.E [R4.64], R3                                               // store from R4, R5
@!P0 BRA 0xa0                                                   // goto 0xa0 if i < n

It needs 14 instructions or 5 more than the 32-bit iterator version.

  • 2 instructions: the pointer arithmetic requires one extra instruction to add the upper 32-bits (two pointers)

    The .X in IADD3.X R3, R5, c[0x0][0x164], RZ, P0, !PT and IADD3.X R5, R5, c[0x0][0x16c], RZ, P0, !PT means add the carry.

  • 1 instruction: The conditional needs to compare the high 32-bits of the 64-bit n.

    IMAD.X R7, RZ, RZ, R7, P0

  • 1 instruction: The iterator needs to add the carry to the high 32-bits of the 64-bit iterator ISETP.GE.U32.AND.EX P0, PT, R7, c[0x0][0x174], PT, P0.

What about Mojo?

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
fn copy[simd_size: Int, align: Int](
    a_ptr: UnsafePointer[Scalar[dtype]],
    b_ptr: UnsafePointer[Scalar[dtype]],
    n: Int,
):
    var idx = ThreadIdx.x() + BlockDim.x() * BlockIdx.x()
    var a = Buffer[dtype](a_ptr, n)
    var b = Buffer[dtype](b_ptr, n)
    for i in range(idx, n//simd_size, BlockDim.x()*GridDim.x()):
        b.store[alignment=align](
            i*simd_size,
            a.load[width=simd_size, alignment=align](i*simd_size),
        )

Here is the Mojo SASS.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
/*02c0*/
IADD3 R4, P0, R13, c[0x0][0x160], RZ ;                  // in low   R4 = P0*R13 + c[0x0][0x160] ?
IADD3.X R5, R14, c[0x0][0x164], RZ, P0, !PT ;           // in high
LDG.E.128 R4, [R4.64] ;                                 // load 128-bit
ISETP.GT.U32.AND P0, PT, R8, R15, PT ;
IADD3 R10, P1, R13, c[0x0][0x168], RZ ;                 // out low
ISETP.GT.U32.AND.EX P0, PT, R0, R17, PT, P0 ;
IADD3.X R11, R14, c[0x0][0x16c], RZ, P1, !PT ;          // out high
SEL R9, R8, R15, P0 ;                                   // R9  = PO ? R8 : R15
SEL R12, R0, R17, P0 ;                                  // R12 = P0 ? R0 : R17
IADD3 R9, P1, -R15, R9, RZ ;
IADD3 R15, P2, R2, R15, RZ ;
ISETP.GT.U32.AND P0, PT, R9, RZ, PT ;
IMAD.X R9, R12, 0x1, ~R17.reuse, P1 ;
LEA R13, P1, R2, R13, 0x4 ;                             // i low
IMAD.X R17, R3, 0x1, R17, P2 ;
ISETP.GT.AND.EX P0, PT, R9, RZ, PT, P0 ;                // i < n ?
IMAD.X R14, R14, 0x1, R19, P1 ;                         // i high
STG.E.128 [R10.64], R4 ;                                // store 128-bit
@P0 BRA 0x2c0 ;

This Mojo function needs 19 instructions per iteration of the memcpy. Whereas the CUDA version with 64-bit iterators needed 14 instructions.

We have not worked through all the details of the undocumented SASS. But the pointer arithmetic makes sense mostly. The pointers are 64-bits.

c[0x0][0x160] and c[0x0][0x164] must store the low and high values of the base input pointer

R13 and R14 I assume are the high and low value of the iterator. The load actually uses two registers R4 and R5 .

1
2
3
IADD3 R4, P0, R13, c[0x0][0x160], RZ ;                  // in low   R4 = P0*R13 + c[0x0][0x160] ?
IADD3.X R5, R14, c[0x0][0x164], RZ, P0, !PT ;           // in high
LDG.E.128 R4, [R4.64] ;                                 // load 128-bit

Where IADD3.X means add with the carry value in P0.

The pointer arithmetic for the output pointer is similar using R10 and R11 for high and low and

c[0x0][0x168] and c[0x0][0x168] must be the low and high 32-bits of the base output pointer.

1
2
3
IADD3 R10, P1, R13, c[0x0][0x168], RZ ;                 // out low
IADD3.X R11, R14, c[0x0][0x16c], RZ, P1, !PT ;          // out high
STG.E.128 [R10.64], R4

The iterator is also 64-bits

1
2
LEA R13, P1, R2, R13, 0x4 ;                             // i low
IMAD.X R14, R14, 0x1, R19, P1 ;                         // i high

The conditional is also 64-bits

1
2
3
4
5
6
7
ISETP.GT.U32.AND P0, PT, R8, R15, PT ;
ISETP.GT.U32.AND.EX P0, PT, R0, R17, PT, P0 ;
SEL R9, R8, R15, P0 ;                                   // R9  = PO ? R8 : R15
SEL R12, R0, R17, P0 ;                                  // R12 = P0 ? R0 : R17

ISETP.GT.U32.AND P0, PT, R9, RZ, PT ;
ISETP.GT.AND.EX P0, PT, R9, RZ, PT, P0 ;

Based on the CUDA code the SASS would be a lot simpler if the iterator and max value were 32-bit instead of 64-bits.


and


Update with cache busting in Bencher

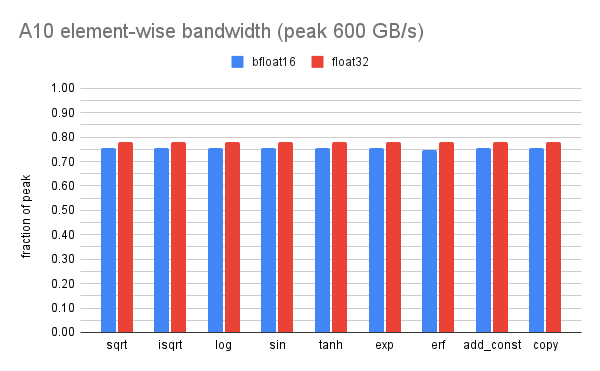

A10 element-wise bandwidth (peak 600 GB_s)(3).png

L4 element-wise bandwidth (peak 300 GB_s) (1).png

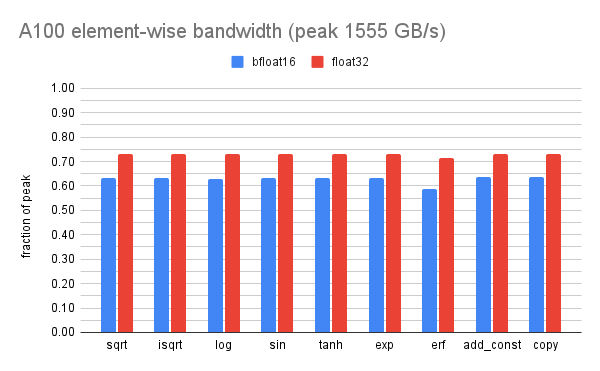

A100 element-wise bandwidth (peak 1555 GB_s)(8).png

A10 element-wise bandwidth (peak 600 GB_s)(4).png

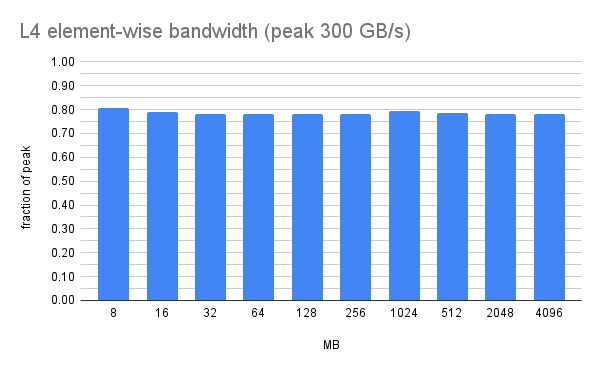

L4 element-wise bandwidth (peak 300 GB_s)(5).png

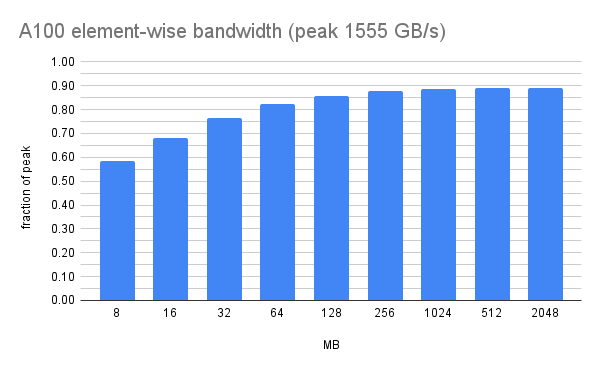

A100 element-wise bandwidth (peak 1555 GB_s)(10).png

Observations:

  • bfloat16 is a bit faster than float32 on the L4 but a bit slower than float32 on the A100 and A10.
  • On the A100 bfloat16 is slower than float32.
  • On the A100 the bandwidth is lower than 60% of peak for 8 MiB but almost 85% for 2 GiB.
